پخش ALPINE CDE-135EBT

پخش حرفه ای آلپاین استوک(کارکرده)

ALPINE CDE-135EBT

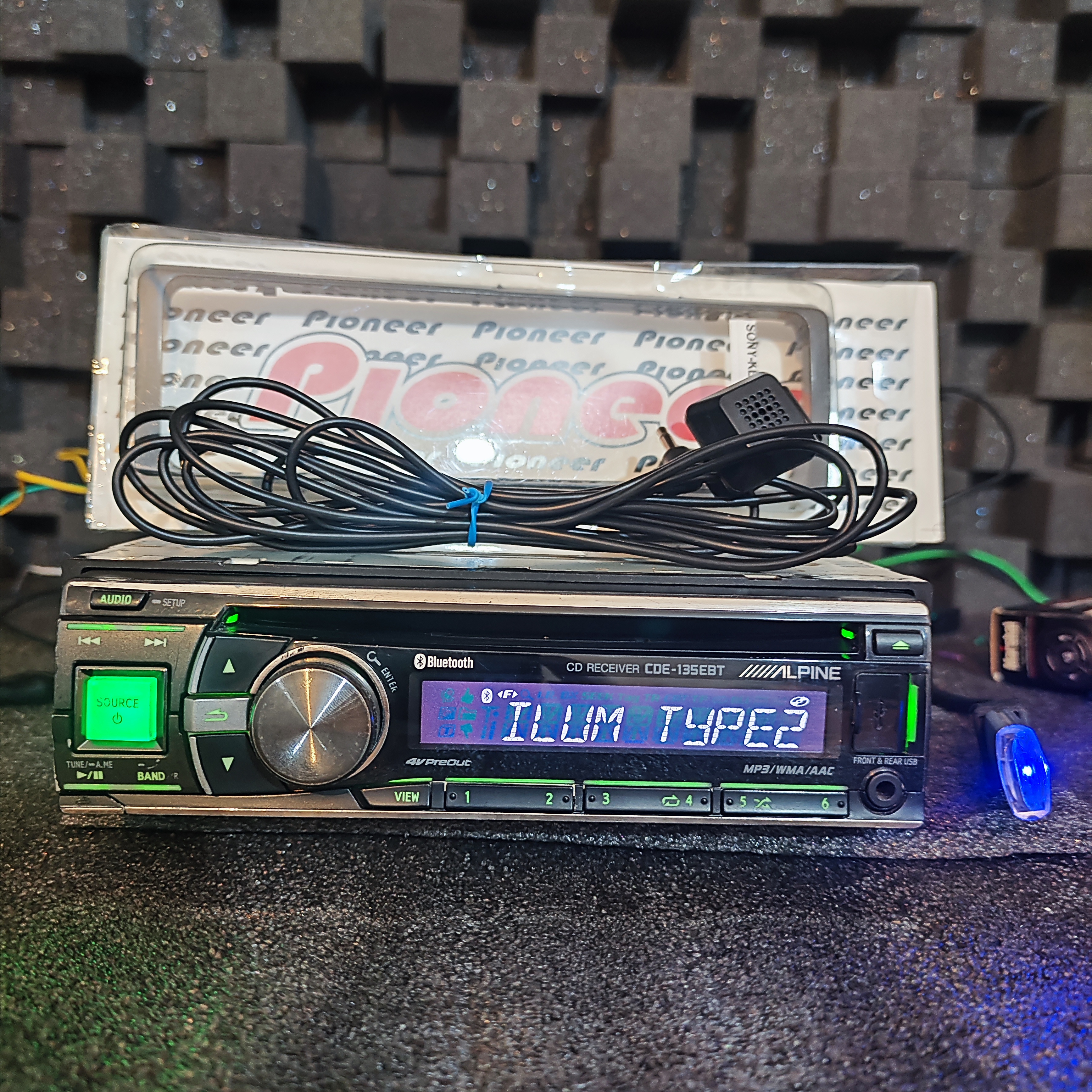

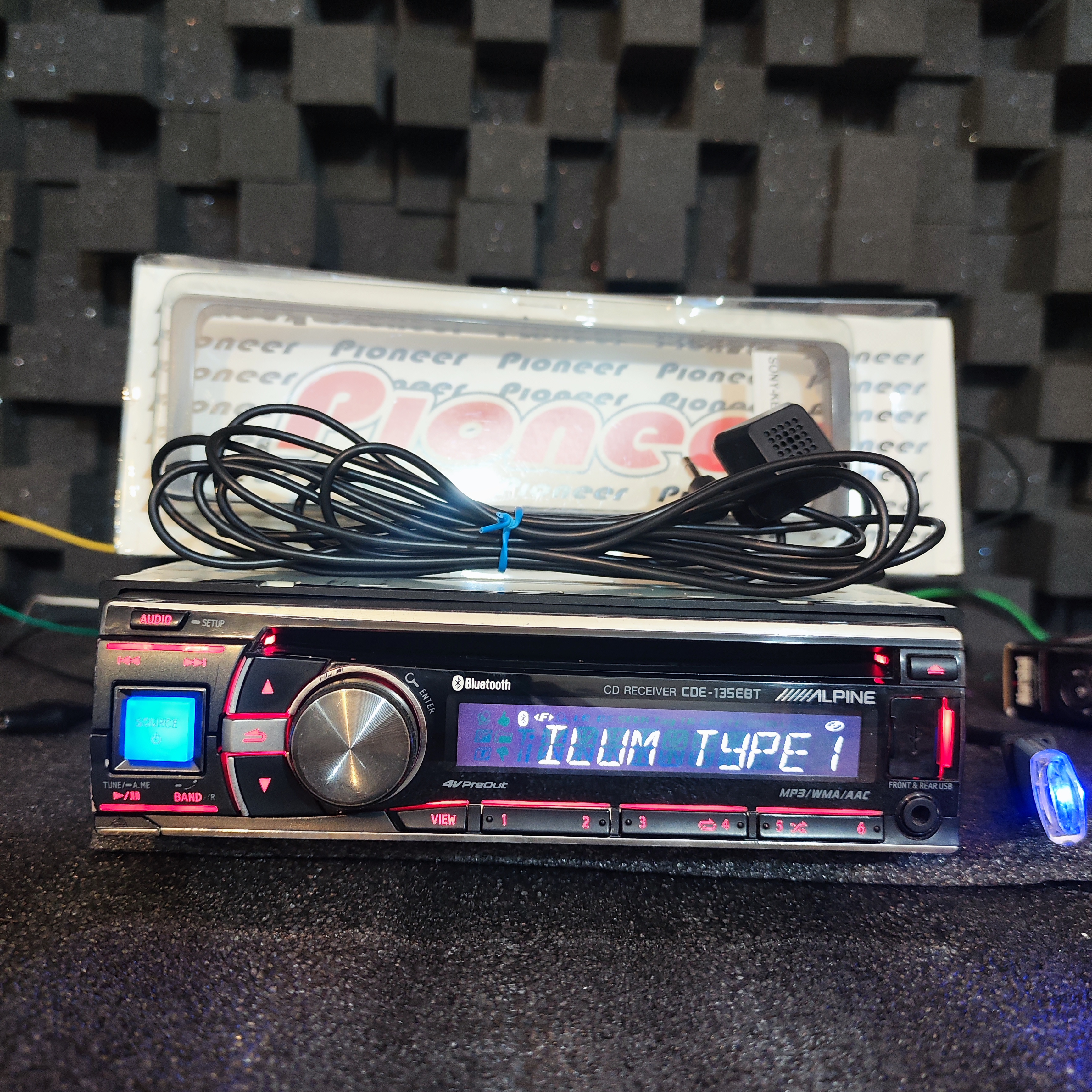

وسایل همراه کامل: سوکت برق ، میکروفن آکبند، زه دور

• 6 خروجی 4 ولت امپلیفایر و امپ داخلی 4*50 وات
• بلوتوث موزیک و مکالمه(HFP/A2DP/AVRCP Profile)
• دک صوتی 24 بیت
• 2 پورت فلش مموری USB(یکی پشت دستگاه و یکی روی پنل پخش)
• دارای چندین رنگ کلید
•  3باند اکولایزر پارامتریک که هر باند شامل چندین فرکانس و چندین Q FACTOR میباشد
• دارای کراساور فعال HPFبرای استیجها
• دارای LPF سابووفر
• تنظیمات کامل سابووفر
• نسبت سیگنال به نویز 105 دیبی
• ساپورت اپلیکیشن PANDORA برای ایفون و اندروید

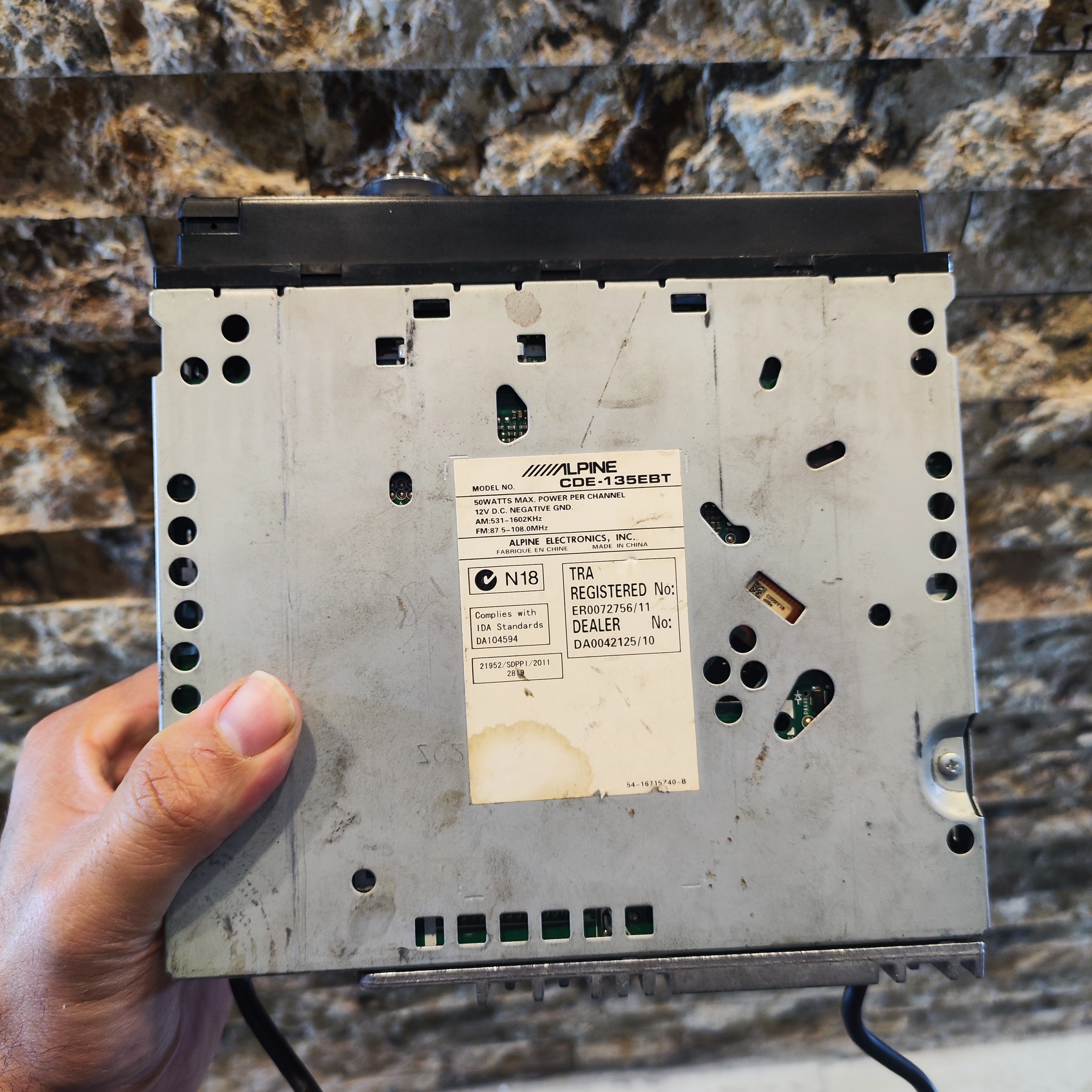

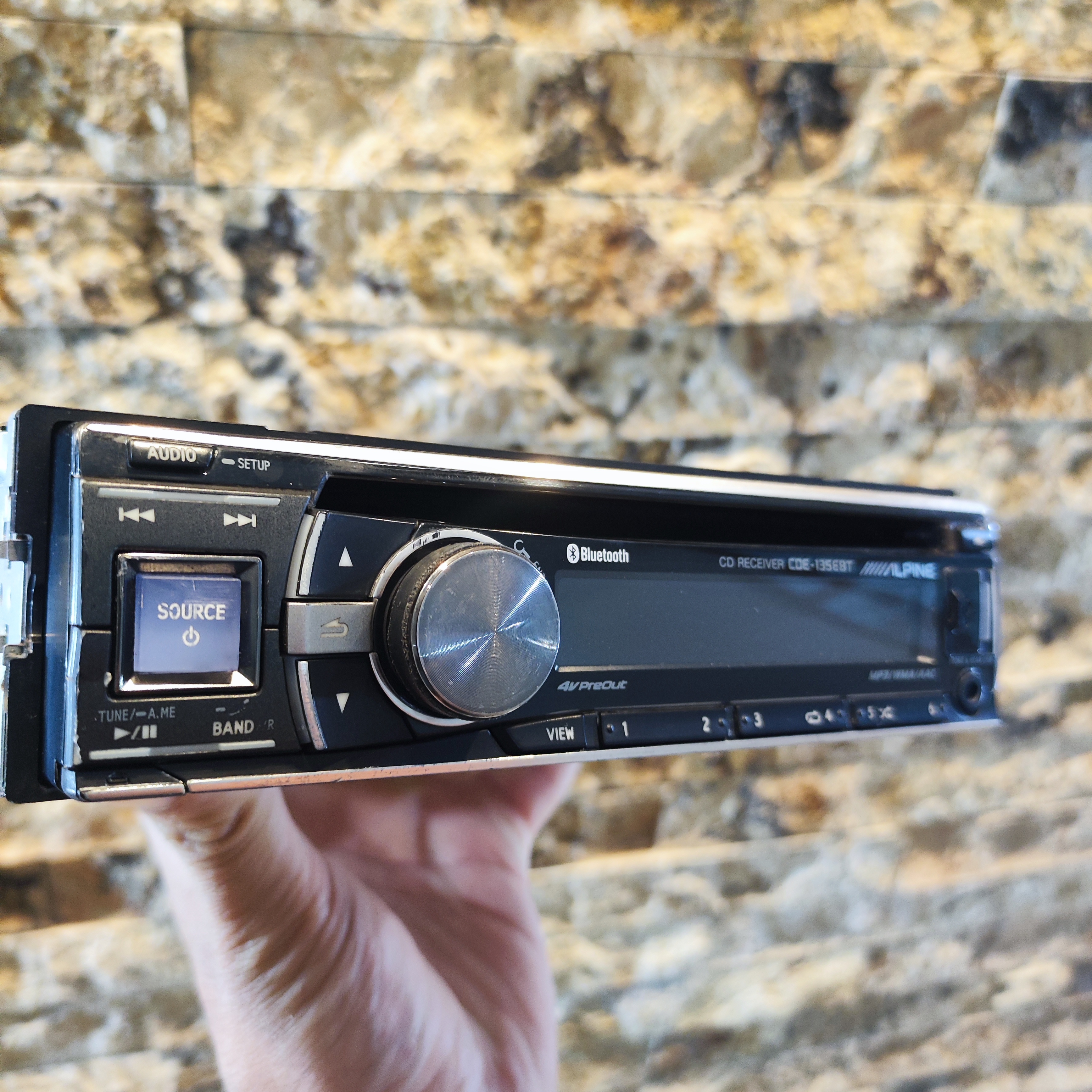

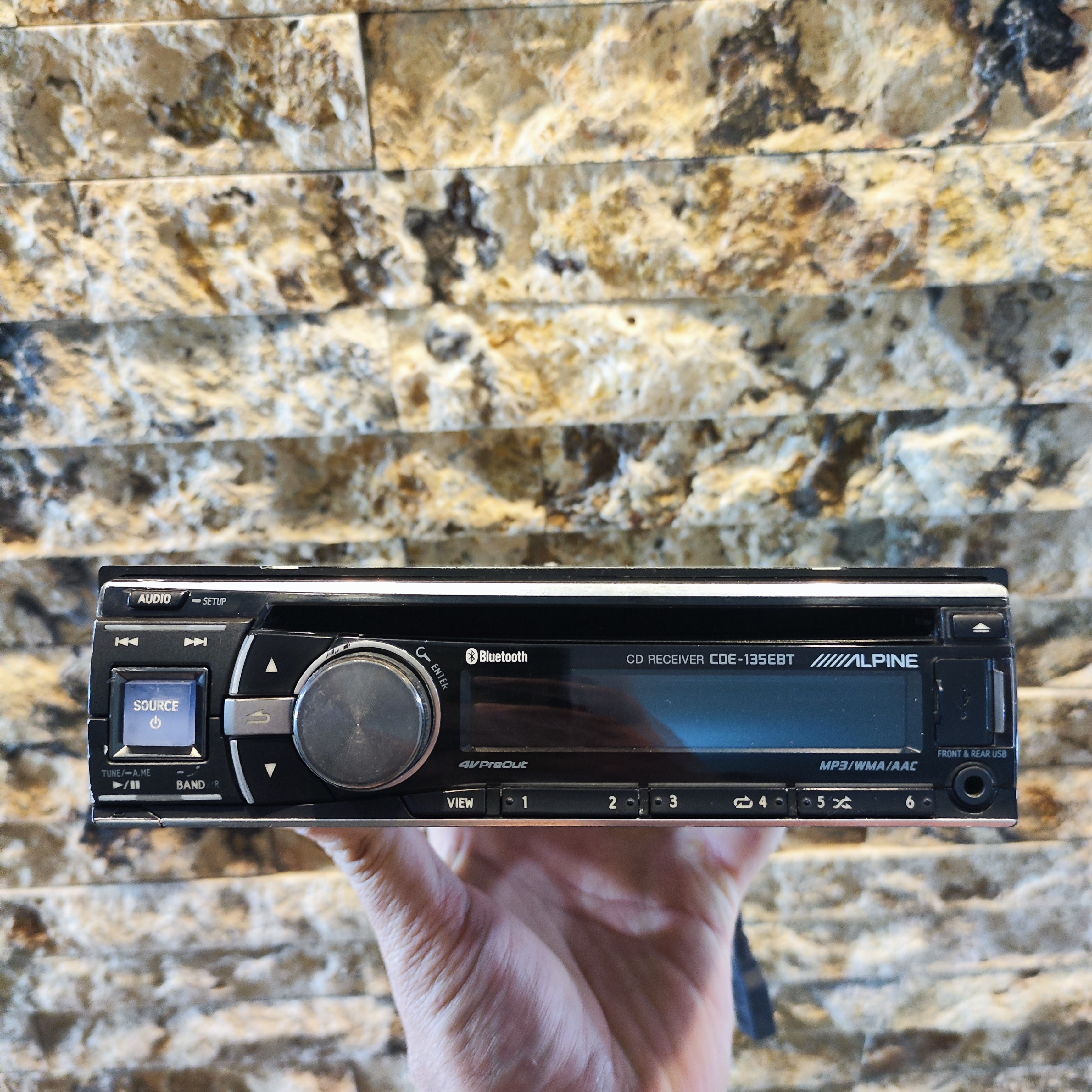

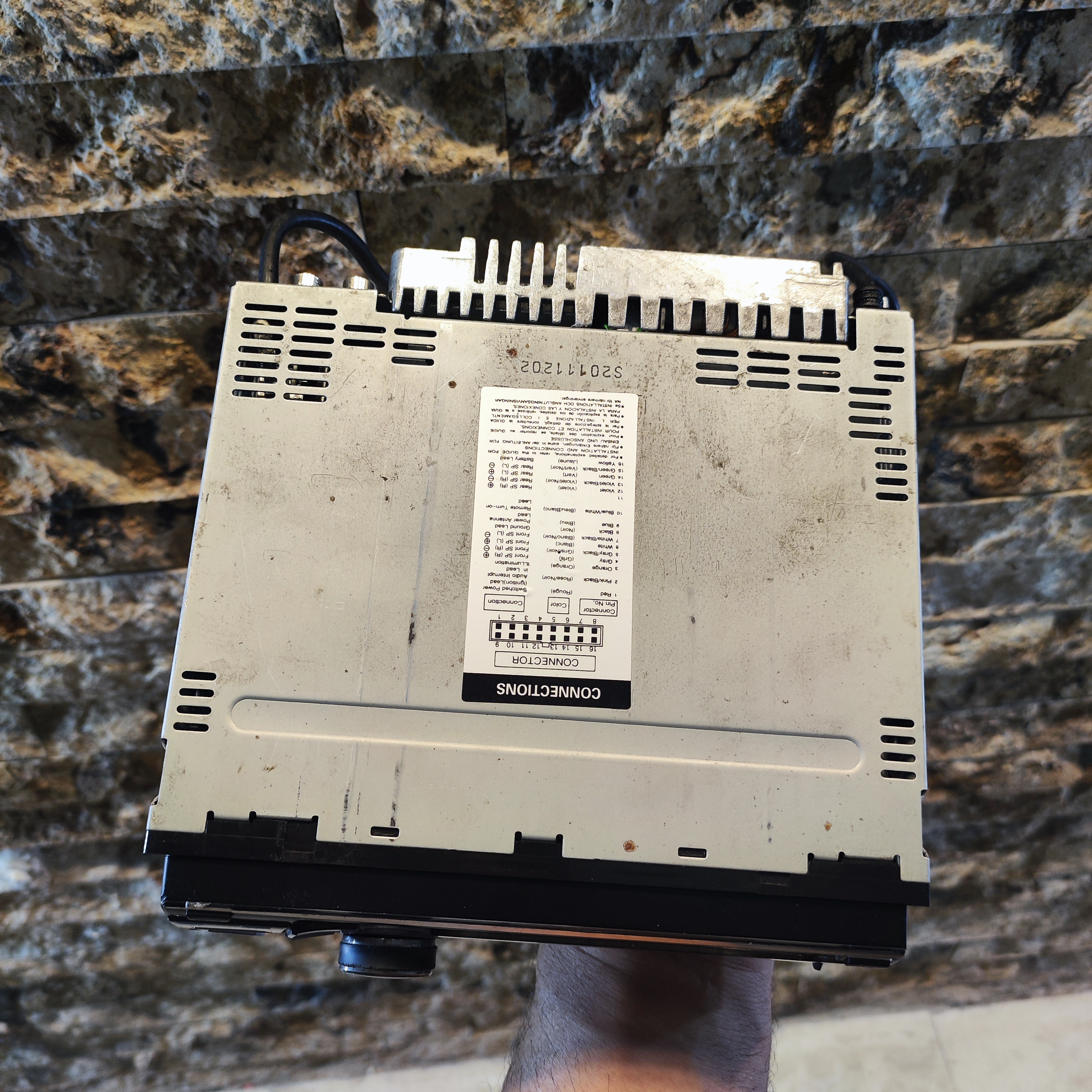

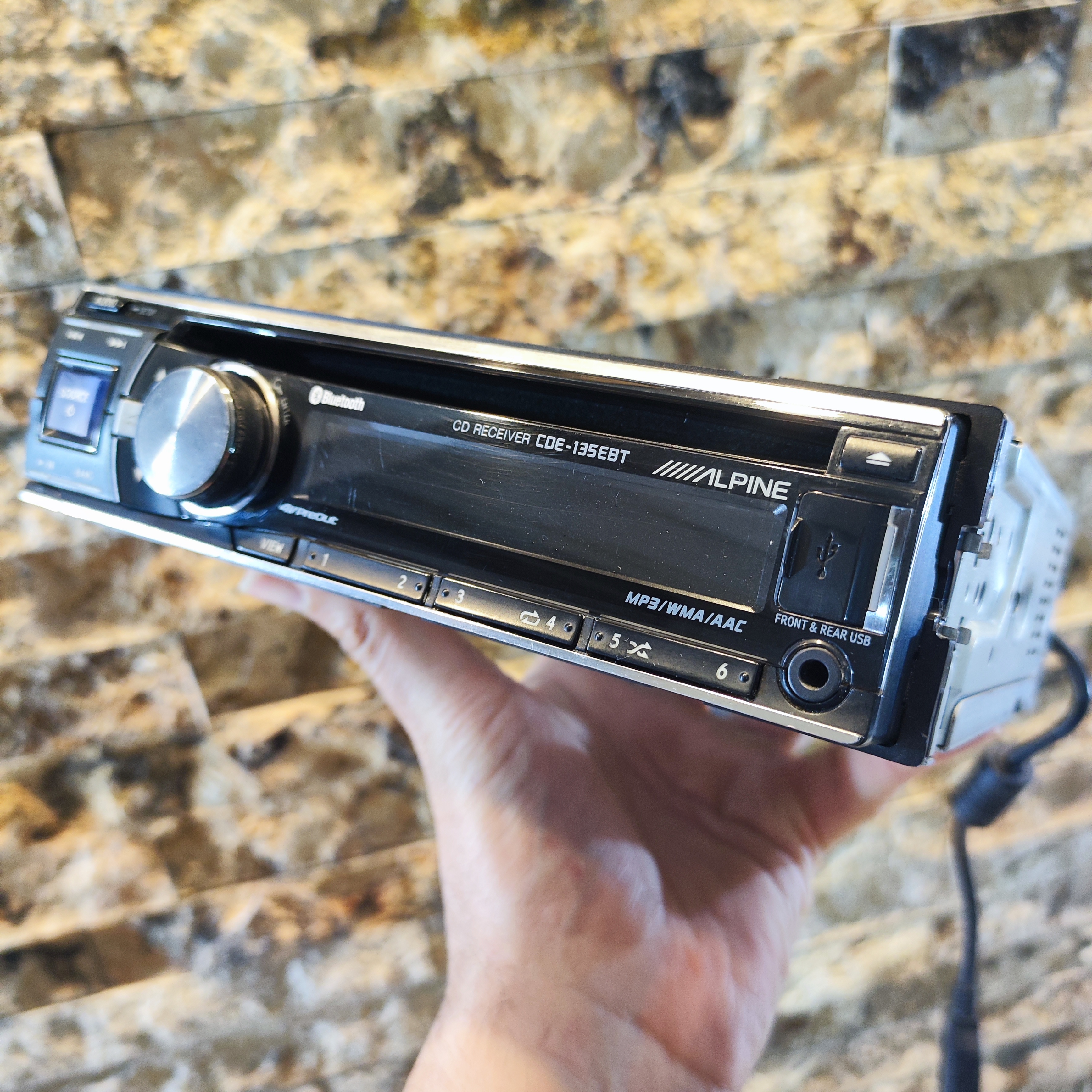

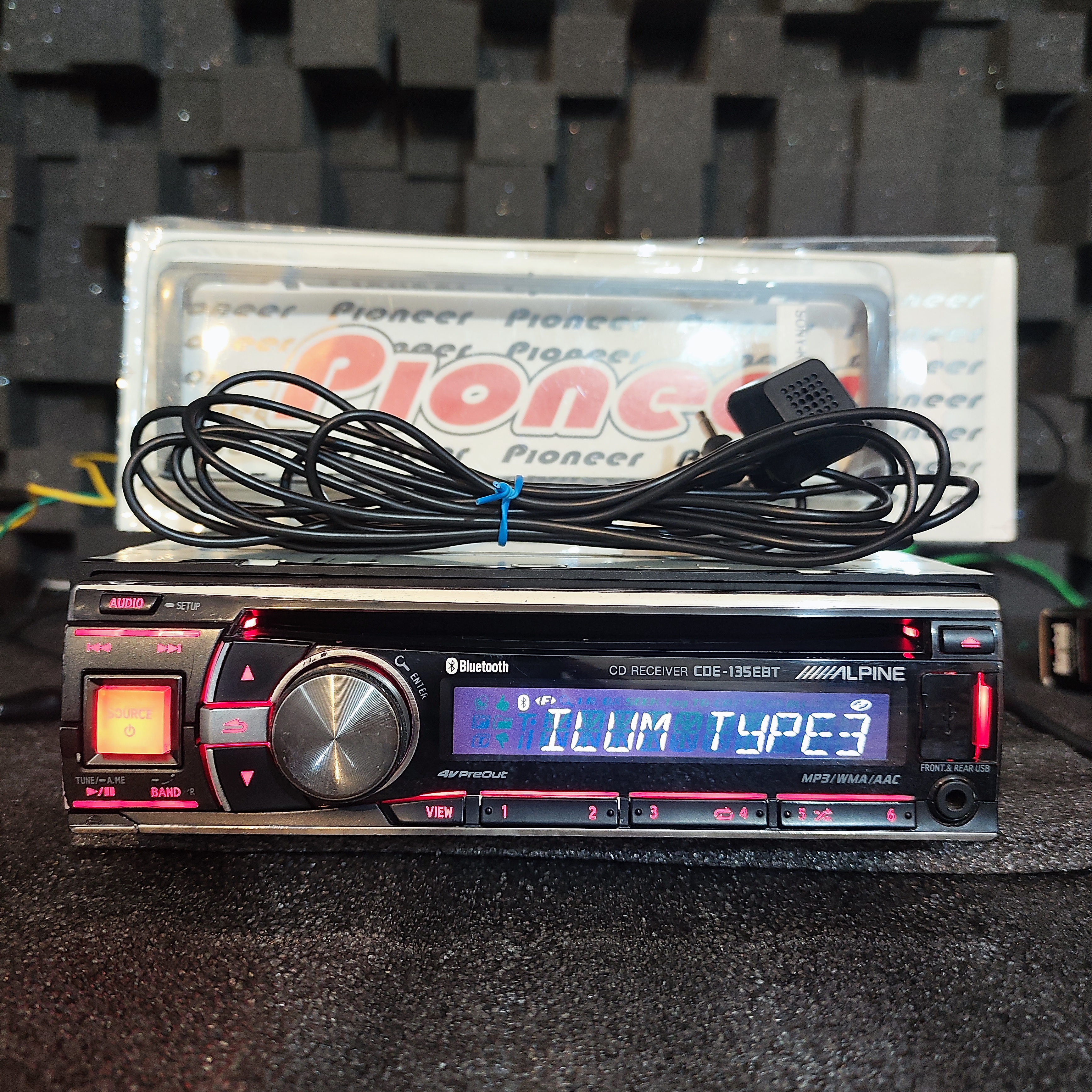

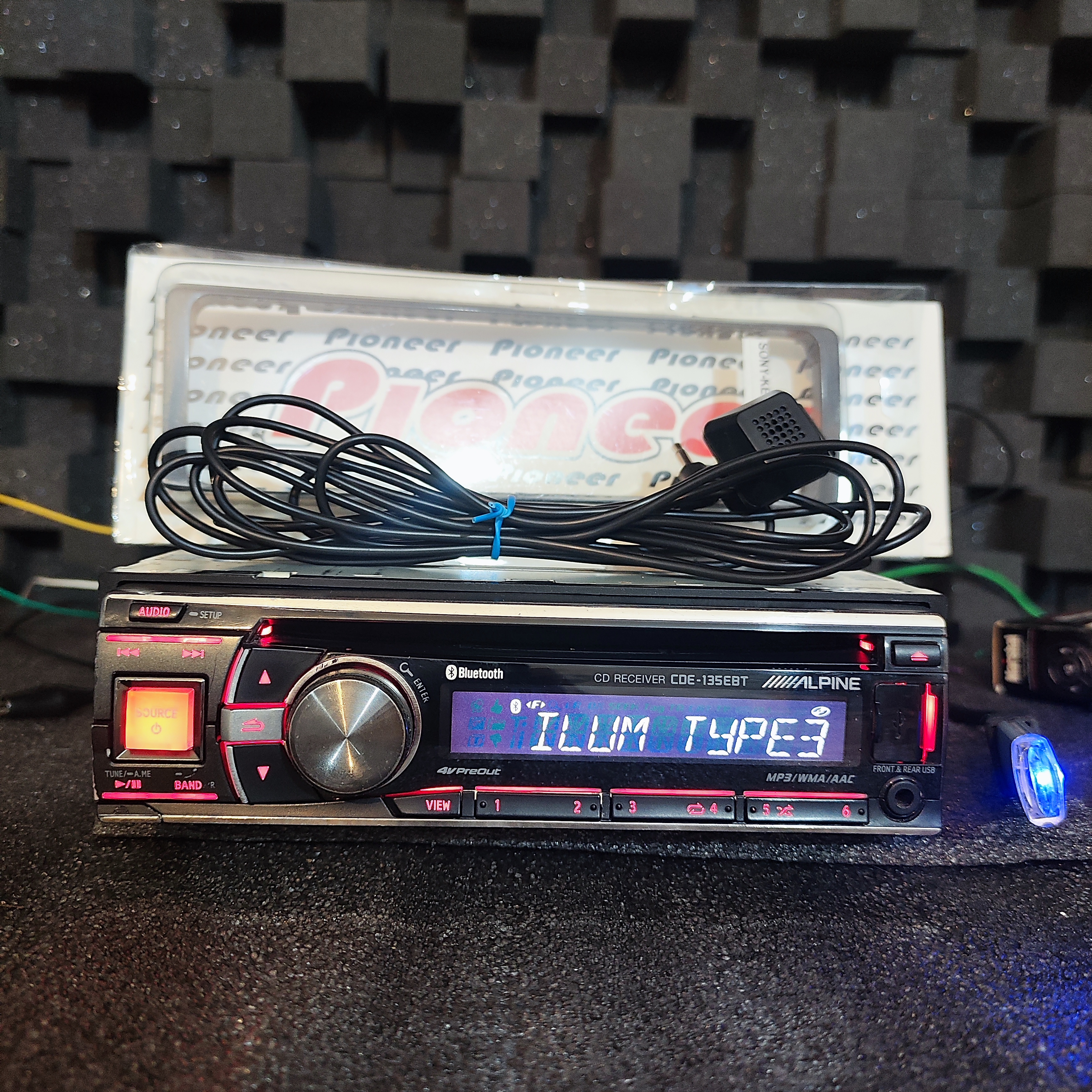

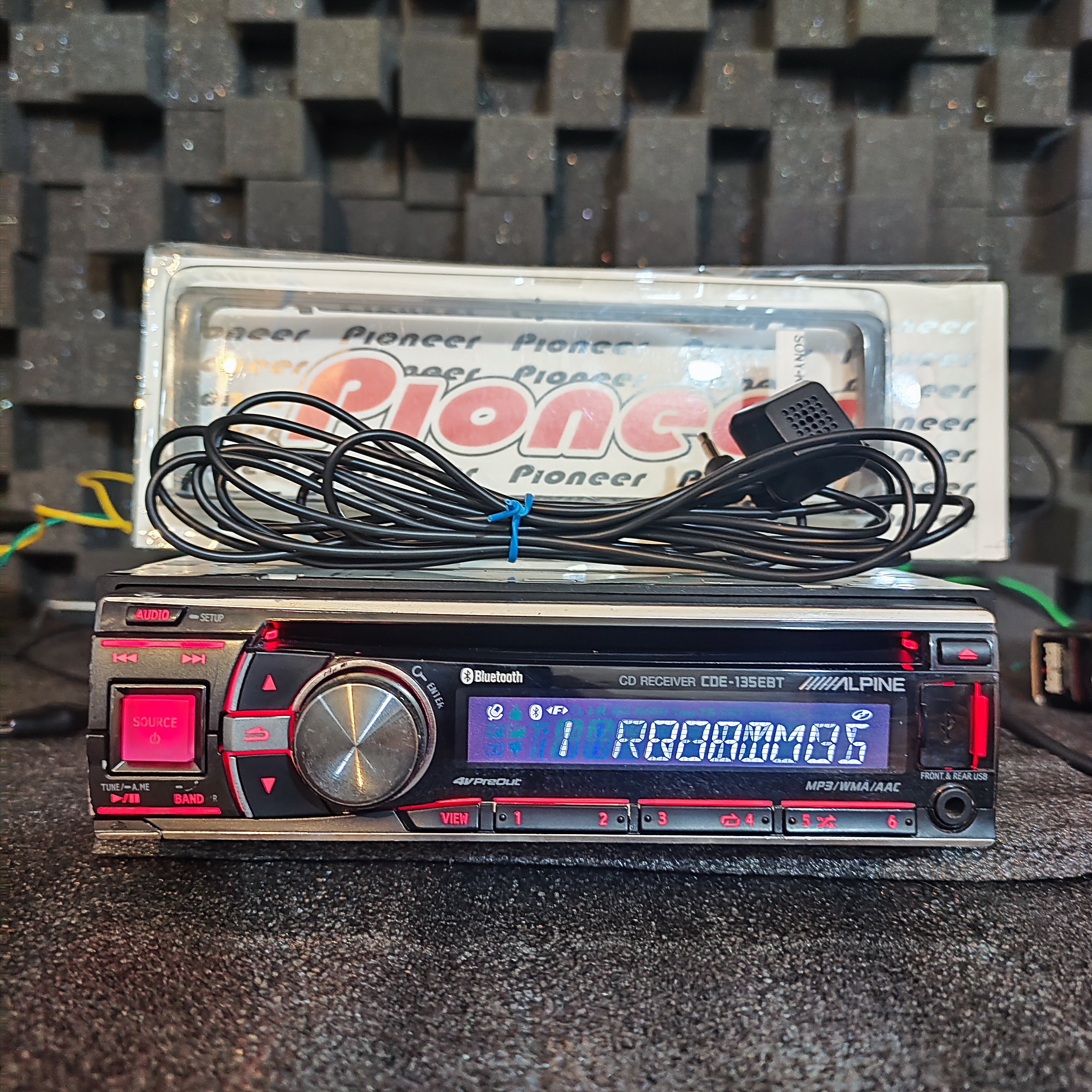

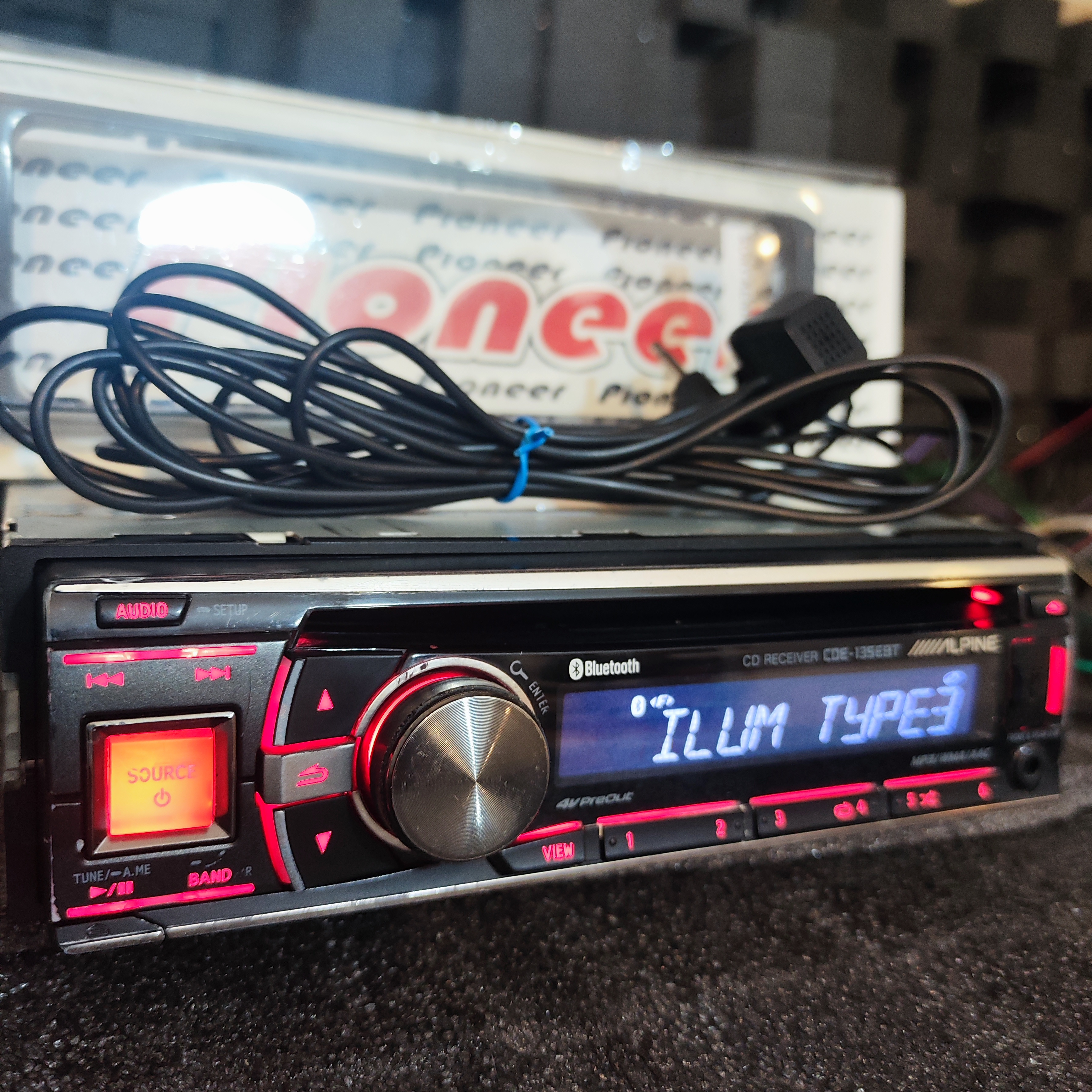

***پخش استوک میباشد و سعی شده تصاویر با کیفیت از کالا قرار گیرد. لذا تصاویر را ملاک خرید خود قرار دهید(دوستان دقت بفرمایید کالای استوک هرچقدر هم که تمیز باشد دارای خش های ریز میباشد)***

--------------------------------------------------------------------------------------------------------------

مشخصات رسمی پخش طبق کاتالوگ خود شرکت👇

CDE-135EBT

The CDE-135EBT is a high-performance head unit that lets you discover the world of internet radio with vTuner internet radio capability. Simply connect your iPhone with installed vTuner internet radio for Alpine app (available on the iTunes Store) and browse through thousands of internet radio stations from all over the world right from your dash.

You will also like the convenience of 2 USB ports to connect mass storage devices or your iPod, as well as the built-in Bluetooth capability for hands-free phone operation and audio streaming.

4 illumination colors let you match your radio to your dash for a perfect match.

A 3.5mm front AUX port allows you to hook up any portable MP3 player or even a portable Navigation device to hear voice guidance messages through the car speakers.

If you want to connect your mobile gadgets and use internet radio in your car, you found the perfect Head Unit.

Enjoy vTuner Internet Radio

Connect your iPhone via USB and you can use the vTuner internet radio application to enjoy high quality music streaming. While driving you can conveniently control many vTuner internet radio functions through the head unit. vTuner internet radio gives you a choice of thousands of online radio stations in every genre, from Alternative and Ambient to World music from around the globe. You can also access all kinds of talk shows and other content like sports broadcasts.

Built-in Parrot Bluetooth

Featuring Parrot Bluetooth capability, these CD Receivers give you hands-free operation of your Bluetooth-enabled mobile phone with full phonebook access. A noise cancelation function ensures that calls are heard clearly. You can also stream music from your mobile phone and enjoy it through your car audio system.

Works with Nokia

You can connect Nokia (Symbian™) phones via USB to play back the music stored on the phone. You can also control basic music playback functions such as play, pause and title skip and search for music by files and folders. The phone also charges while it is connected. Requires KCU-230NK connection cable.

Expand your listening choices with Dual USB Inputs  and AUX-Input

This versatile head unit provides USB inputs on the front and rear. Use the rear input for a “permanent” connection and the front one for plugging in portable devices. There’s also a 3.5mm mini jack for MP3 players or Portable Navigation Devices.

Made for iPhone® and iPod®

You can control your iPhone/iPod from the head unit, using Quick Search to find songs fast. Direct iPod Control Mode lets you use the iPhone/iPod interface for direct operation and for viewing information in your desired language. This comes especially handy when a passenger selects the music while you keep your eyes on the road. Connect your iPod® or iPhone® via the CDE-135BT’s front or rear USB port (requires KCU-442i or the original Apple USB cables that comes with your Apple product).

Quick Search

Here’s the best way to find your music fast. The rotary knob and Quick Search feature let you easily and quickly browse through your iPod music by playlist, artist, album, song, genre, podcast, audiobook or composer.

4 Illumination Colours Selectable

You can adjust the Head Unit’s button illumination colour to match your dash. The main button can be switched to green, blue, red or amber illumination, while the other buttons can be set to green or red illumination.

FEATURES

Tuner

• Memory Presets: FM:18 / MW:6 / LW:6
• Memory: Auto Memory
• Seek Mode: Local / DX Selection

RDS

• RDS Functions: AF, TA, TP, PTY, NEWS, EON, RADIO TEXT

BLUETOOTH®

• Built-in Parrot BLUETOOTH®
• Hands Free Calling: HFP (Hands Free Profile), HSP (Head Set Profile) Compatible Phones
• Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
• Streaming Music Control: AVRCP (Audio/Video Remote Control Profile) Ver.1.3 Compatible
• Advanced BLUETOOTH® Technology
• Connection: SSP (Simple Secure Pairing) Supported
• Phone Book: Phone Book Synchronization
• Phone Book Search: 3 Letters Alpｈabet Search
• Speed Dial: 6 Presets Memory
• Multiple Phone Number Registration: 5 Phone Number Registration Possibility
• Phone Book Label Display: General, Mobile, Home, Office, Other
• Voice Dial Operation
• Auto Answer
• Call Waiting
• Call History Display: Dialled Call / Received Call / Missed Call
• Speech Volume Level Adjustment: Possible for Outgoing and Incoming Volume
• Hands-Free Phone Sound Setting: 5 Type Selection
• Menu Language Selection: English, German, French, Italian, Spanish, Dutch
• Firmware Updatable
• Microphone Included

Made for iPod® / iPhone®

• Compatibility for iPod/iPhone: Made for iPod touch 4th/3rd /2nd/1st Gen., iPod nano 6th/5th/4th/3rd/2nd/1st Gen., iPod classic 160GB/120GB/80GB, iPod with video, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G and iPhone
• Connection: KCU-442i (Sold separately) Required
• Available Selections: Playlist/Artist/Album/Song/Podcast/Genre/Composer/Audiobook
• Alphabet Search
• Percentage Search
• Direct iPod/iPhone Control
• iPhone vTuner internet radio playback: vTuner internet radio for Alpine App Download Required from iTunes Store
• Direct Up/Down: Playlist/Artist/Album/Genre/Composer/Episode
• M.I.X. (Shuffle) Play: Song, Albums, All
• Repeat
• Battery Charging

Works with Nokia

• Works with supported Nokia (Symbian™) Phones: Mass Storage Mode
• Connection Type: Micro USB Connection
• Connection: KCU-230NK (Sold separately) Required
• Muisc Playback: MP3/WMA/AAC Playback
• File/Folder Name Search
• Tag Info Search
• Folder Up/Down
• M.I.X. Random Play
• Repeat
• Battery Charging

Disc Player

• Disc Type: CD Player
• Disc Playback Type: CD, CD-R/RW
• Music Playback: CDDA, MP3/WMA/AAC
• M.I.X. Random Play: Track/File, All
• Repeat
• CD Text Display
• CD Text Name Search
• DAC: Multi Bit DAC
• Zero data Mute: 0 Bit Mute
• Digital Servo

USB Media Connection

• USB Connection: Front/Rear USB Connection (USB Extension Cable x 1 Included)
• Music Playback: MP3/WMA/AAC Playback
• USB Class: Mass Storage Class
• File/Folder Name Search
• Tag Info Search
• Folder Up/Down
• Banking: Max. 20 Banks (20,000 songs)
• M.I.X. Random Play
• Repeat

Sound Tuning

• Bass Engine™
• Subwoofer Level Adjustment
• Subwoofer Phase Select
• Subwoofer Level Control Management
• High Pass Filter
• Low Pass Filter
• 4V High Voltage PreOut
• Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical, User Customize
• 3-band Parametric Equalizer
• Loudness
• Source Tone Memory
• Power IC Management System

General

• Power Output: 4 x 50 W High Power Amplifier
• 14 Segments White LCD Display
• Control Type: Rotary Encoder Knob
• Face Color: Black
• Illumination Buttons: 4 Illumination Colour Selectable for Main Button (Blue/Green/Red/Amber), 2 Illumination Colour Selectable for Sub Buttons (Red/Green)

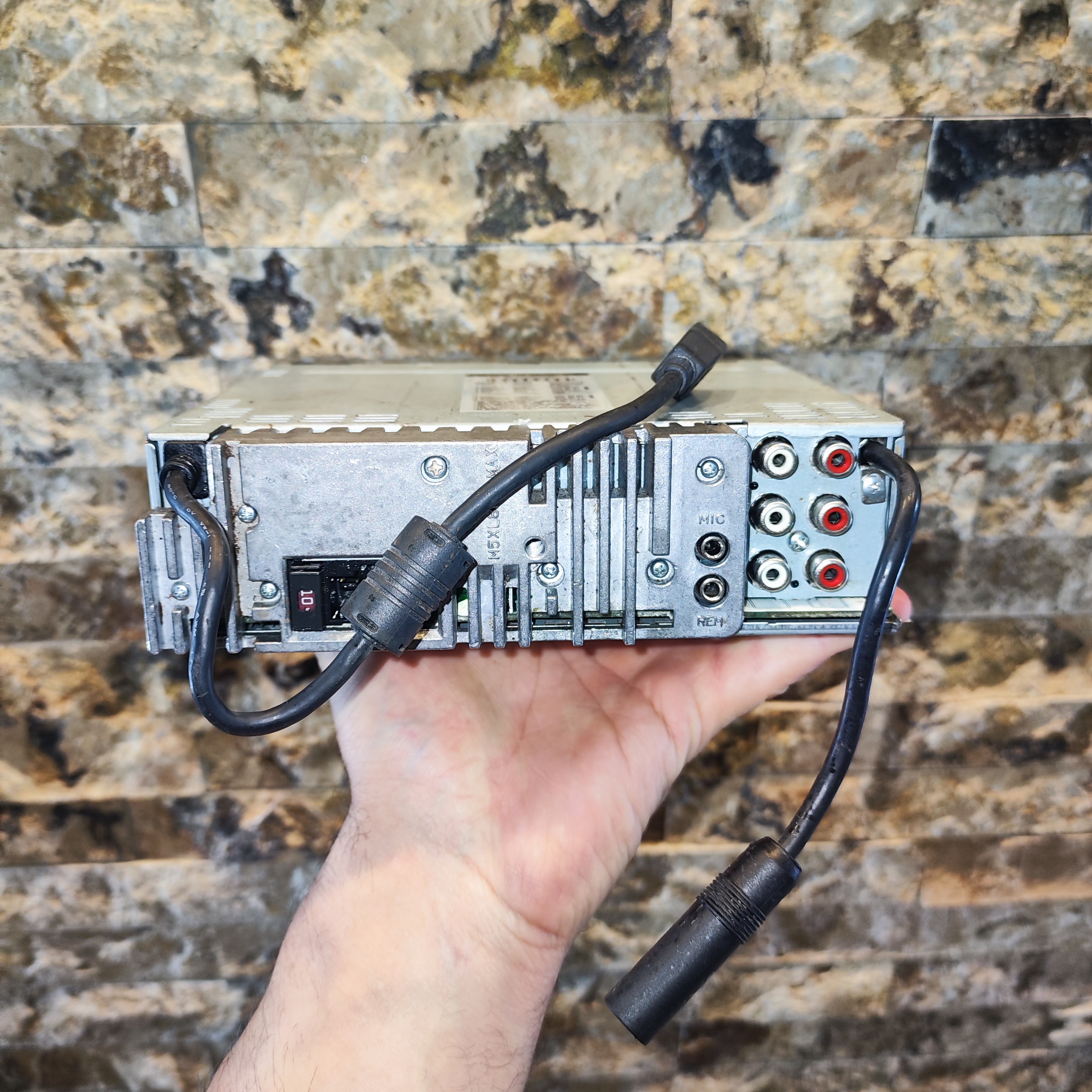

• 3 PreOuts (4V, Front/Rear/Subwoofer)
• Front AUX Input (3.5mm mini jack)
• Steering Wheel Remote Control Ready
• Remote Control Ready
• Display Language: Russian Display Capability (Tag Information)
• AUX Mix for Portable Navigation Devices
• Detachable DIN Trim Plate
• Detachable Face Plate
• Dimmer
• Power Antenna Lead
• Remote Turn-On
• SPECIFICATIONS
  Max Power Output Ratings
•

  • Max Power Output: 4 x 50 W
• FM Tuner
•

  • Tuning Range: 87.5 - 108.0 MHz
  • Mono Usable Sensitivity: 0.7 μV
  • Alternate Channel Selectivity: 80 dB
  • Signal-to-Noise Ratio: 65 dB
  • Stereo Separation: 35 dB
  • Capture Ratio: 2 dB
• MW Tuner
•

  • Tuning Range: 531 - 1,602 kHz
  • Usable Sensitivity (IEC Standard): 25.1 μV / 28 dB
• LW Tuner
•

  • Tuning Range: 153 - 281 kHz
  • Usable Sensitivity (IEC Standard): 31.6 μV / 30 dB
• Disc Player
•

  • Frequency Response: 5 Hz - 20 kHz (±1 dB)
  • Channel Separation (at 1kHz): 85 dB
  • Dynamic Range (at 1kHz): 95 dB
  • Total Harmonic Distortion (at 1kHz): 0.008%
  • Wow & Flutter (%WRMS): B.M.L.
  • Signal-to-Noise Ratio: 105 dB
• USB
•

  • USB Requirements: USB 1.1/2.0
  • Max. Power Consumption: 1,000 mA
  • USB Class: Mass Storage Class
  • File System: FAT 12/16/32
  • MP3 Decoding: MPEG-1/2 AUDIO Layer-3
  • WMA Decoding: Windows Media™ Audio
  • AAC Decoding: ACC-LC format ′′.m4a′′ file
  • Number of Channels: 2-Channel (Stereo)
  • Frequency Response: 5 Hz - 20 kHz (±1 dB)
  • Total Harmonic Distortion (at 1kHz): 0.008%
  • Dynamic Range (at 1kHz): 95 dB
  • Signal-to-Noise Ratio: 105 dB
  • Channel Separation (at 1kHz): 85 dB
• BLUETOOTH®
•

  • BLUETOOTH® Version : Bluetooh V3.0
  • Output Power: +4 dBm Max. (Power Class 2)
  • HFP: HFP (Hands Free Profile)
  • HSP: HSP (Head Set Profile)
  • A2DP: A2DP (Advanced Audio Distribution Profile)
  • AVRCP: AVRCP (Audio/Video Remote Control Profile) Ver.1.3
• Sound Tuning
•

  • Subwoofer Level Adjustment: 0 to +15
  • High Pass Filter: Off / 60 / 80 / 120 / 160 Hz
  • Low Pass Filter: Off / 60 / 80 / 120 / 160 Hz
  • Bass Level Control Range: -14 to +14 dB
  • Bass Center Frequency: 60 / 80 / 100 / 120 Hz
  • Bass Bandwidth Adjustment (Q): 4 choices (0.5 =narrow, 1.0 =medium, 1.5 =medium, 2 =wide)
  • Mid Level Control Range: -14 to +14 dB
  • Mid Center Frequency: 500 / 1k / 1.5k / 2.5k Hz
  • Mid Bandwidth Adjustment (Q): 4 choices (0.75 =narrow, 1.0 =medium, 1.25 =medium, 1.5 =wide)
  • Treble Level Control Range: -14 to +14 dB
  • Treble Center Frequency: 7.5k / 10k / 12.5k / 15k Hz
  • Treble Bandwidth Adjustment (Q): 2 choices (0.75 =narrow, 1.25 =wide)
• General
  • Power Requirement: 14.4 V.DC (11-16V allowable)
  • Pre Output Voltage (Before Clipping): 4 V / 10 k ohms
  • Maximum Mounting Angle: 35°
  • Weight: 1.6 kg
• Dimensions
•

  • Din Size: 1DIN
  • Chassis Size (W x H x D) mm: 178 x 50 x 163 mm
  • Nose Piece Size (W x H x D) mm: 170 x 46 x 25 mm

• وسایل همراه: سوکت برق، میکروفن آکبند(کیفیت درجه یک)، زه نو
