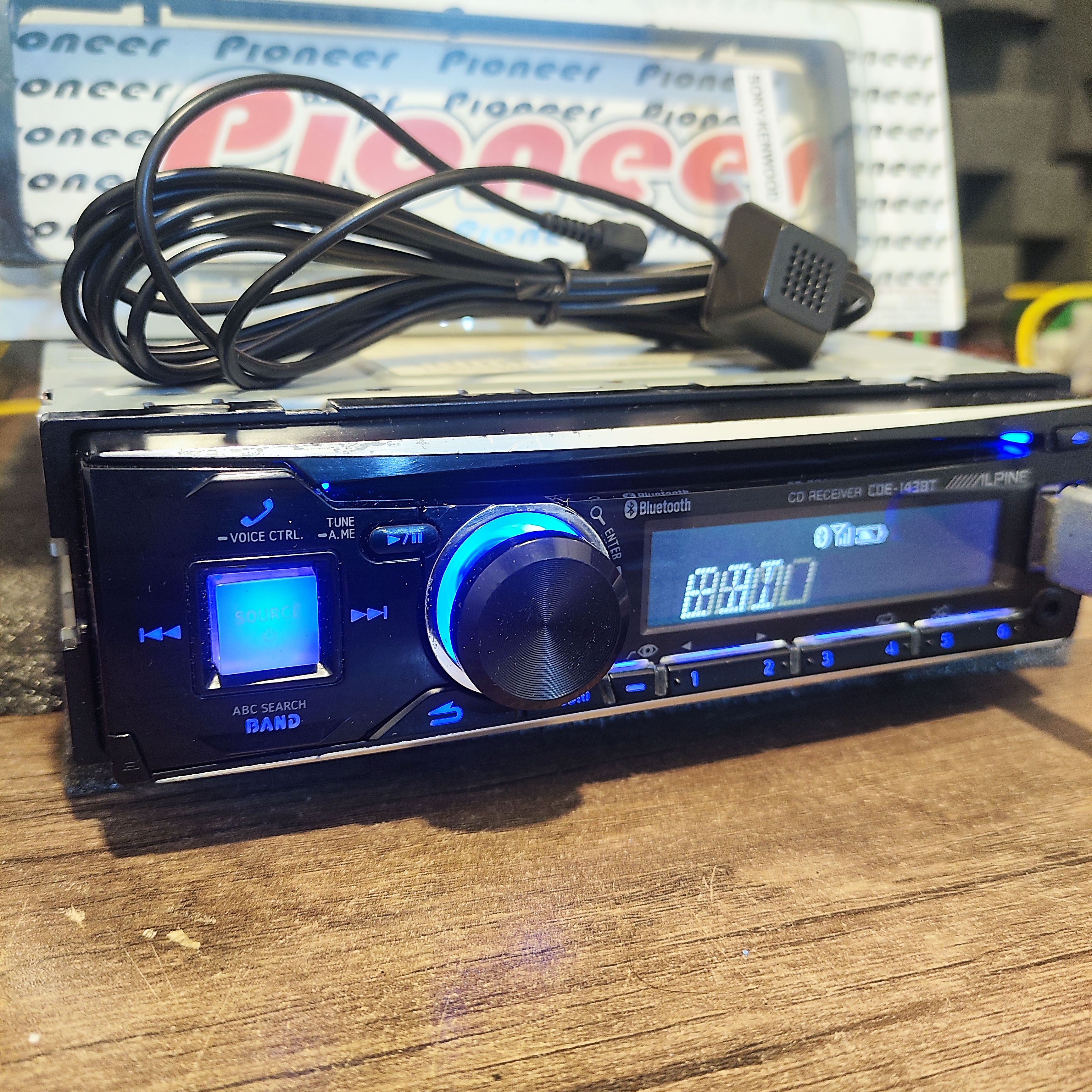

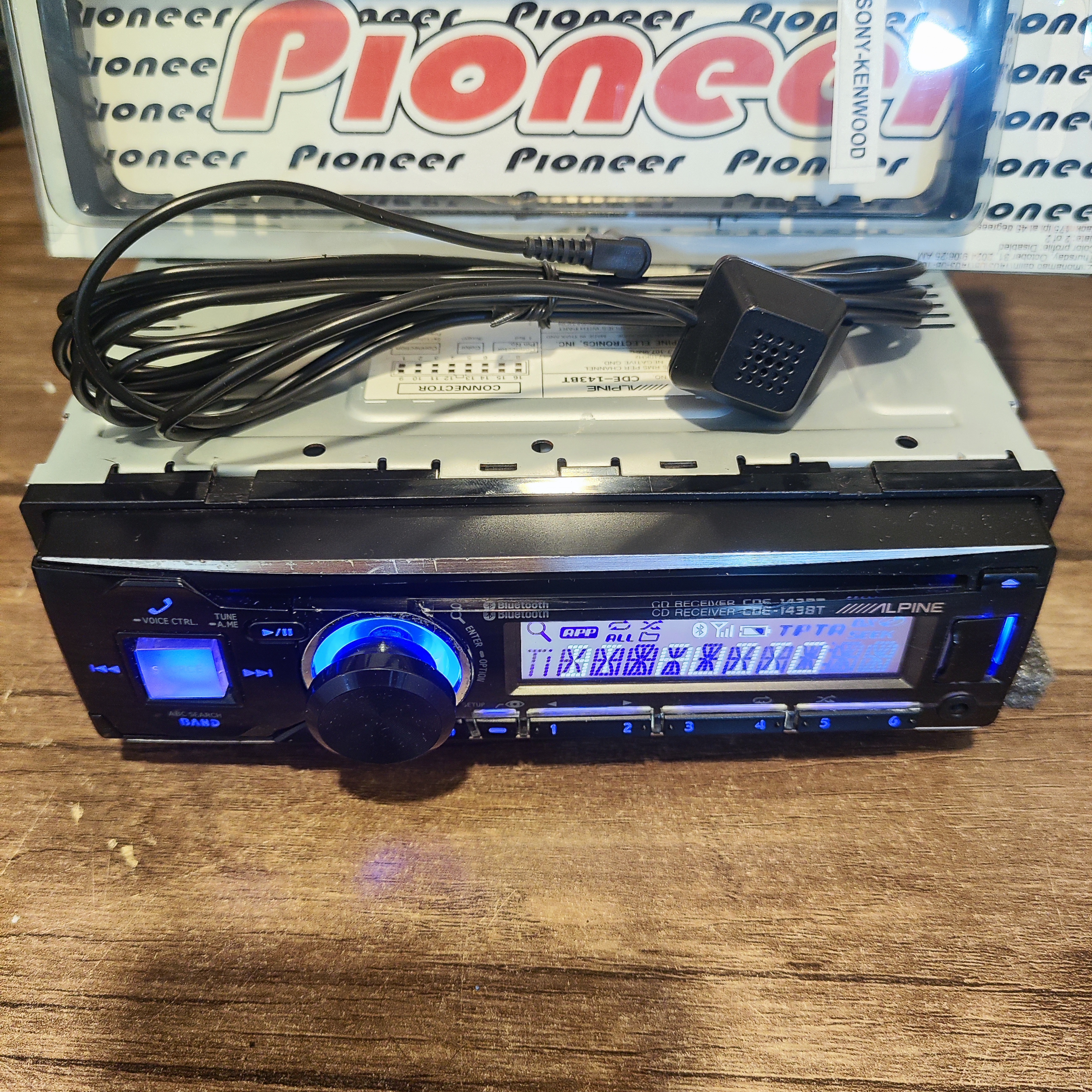

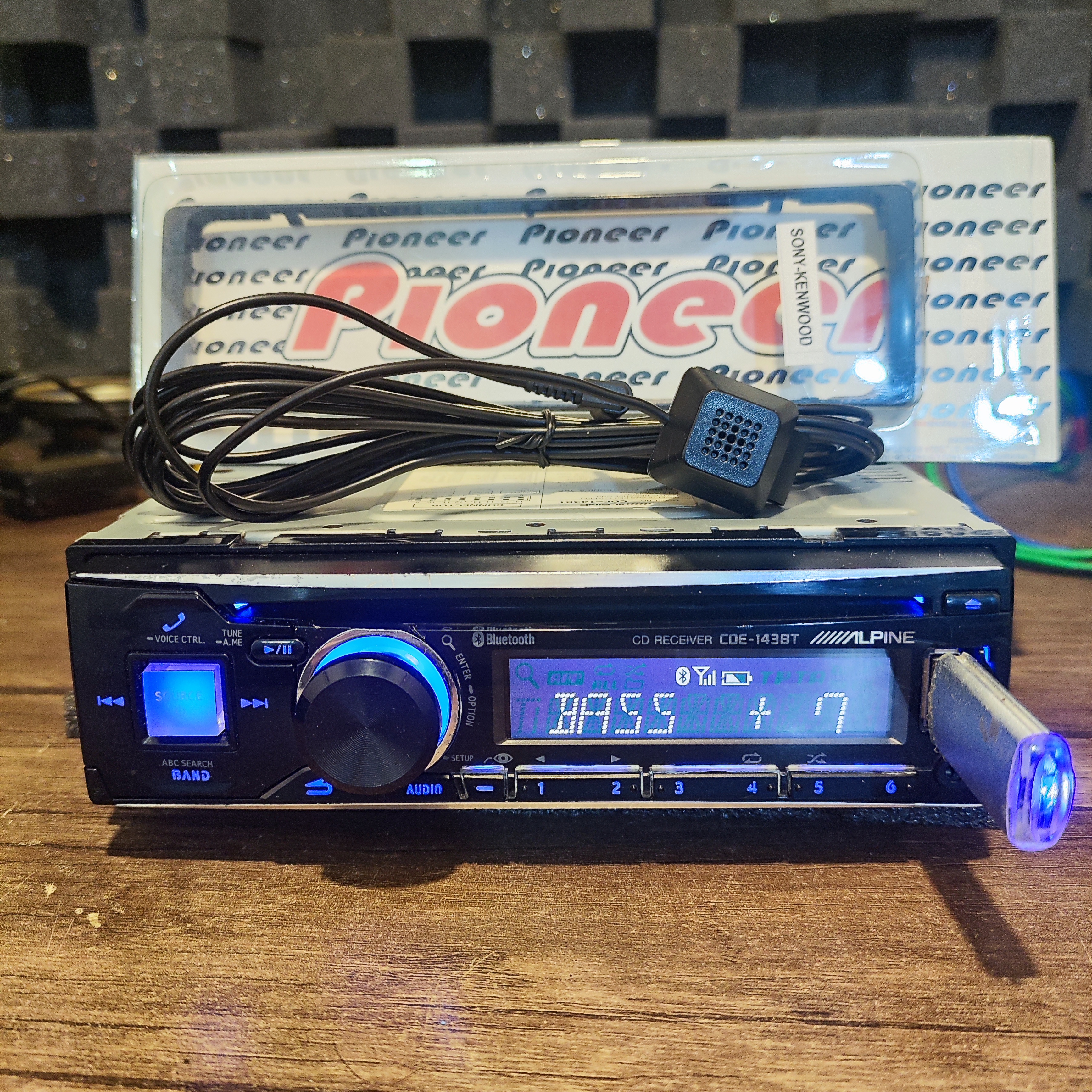

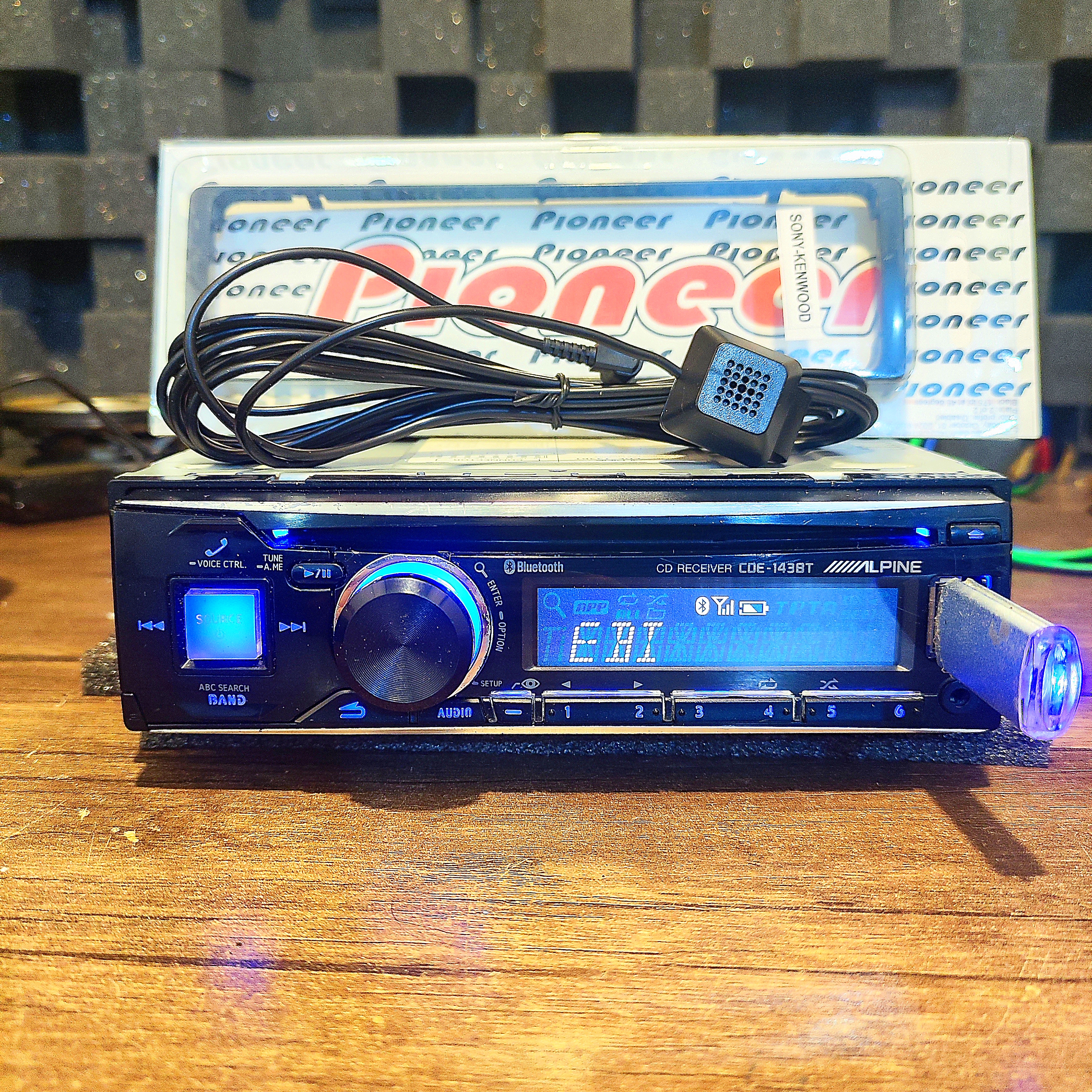

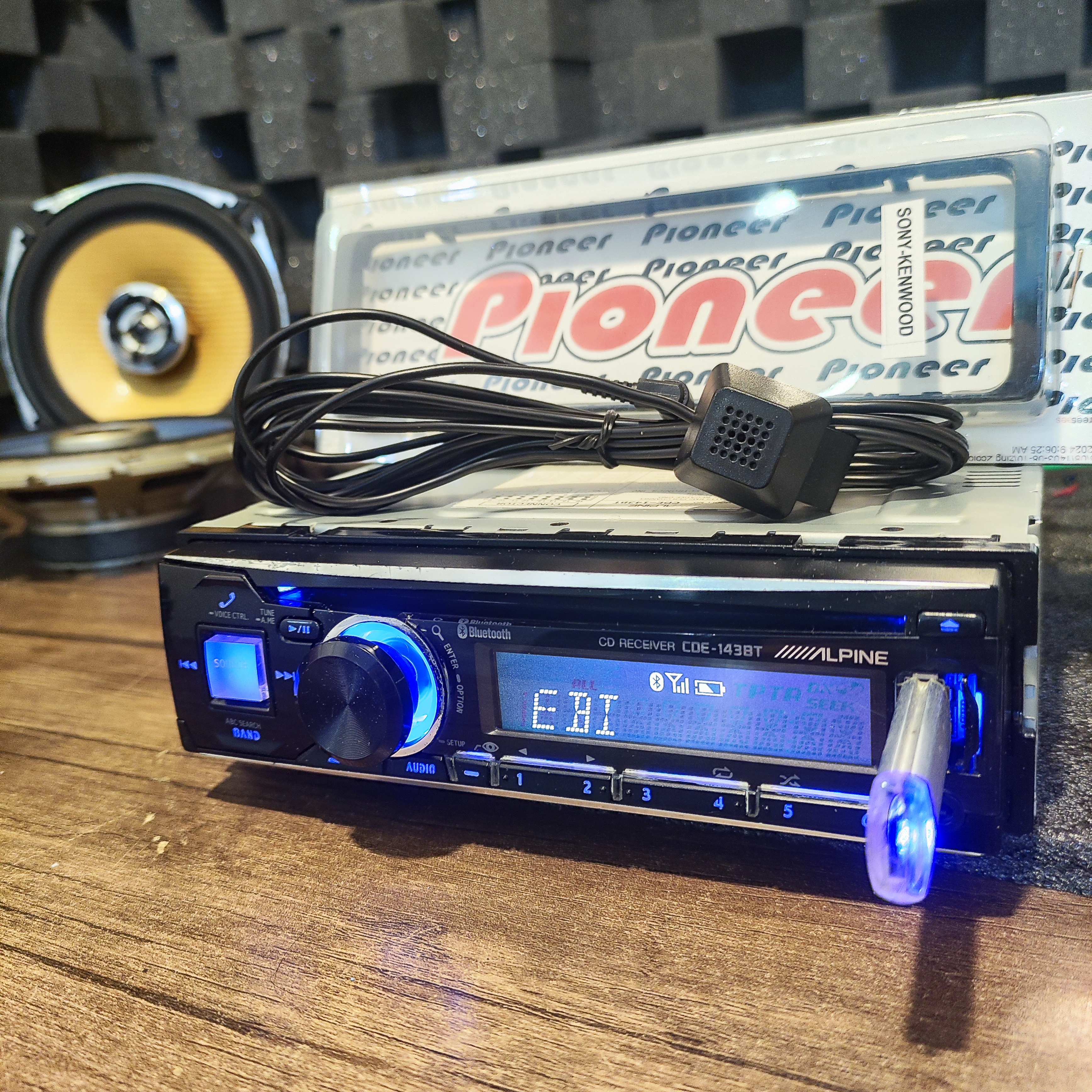

پخش ALPINE CDE-143EBT

پخش خوش صدای آلپاینALPINE CDE-143EBT👌

فیلم تست دستگاه در پیج اینستاگرام فروشگاه موجود است

Top_car_audio@

✅مدل CDE-143EBT👑

👌وسایل(میکروفن،زه، سوکت)

☝️دقت شود قیمت وسایل همراه پخش مبلغ قابل توجهی میباشد
✅4 خروجی 2 ولت آمپلیفایر
✅بلوتوث موزیک و مکالمه- بلوتوث ورژن 3

✅دارای کراس HPF , LPF برای استیج ها و سابووفر

✅تنظیمات کامل سابووفر

✅3 باند اکولایزر پارامتریک که هر باند قابل تعیین کردن Q FACTOR, CENTER FREQ, GAIN و 7 باند اکولایزر پیشفرض

✅ساپورت iphone , ipod و کنترل اپلیکیشن هایpandora , rhopsidy
✅ساپورت CD,USB, RADIO, AUX, BLUETOOTH, PANDORA
✅قابلیت وصل 5 گوشی همزمان
✅ساپورت اینترفیس

***پخش استوک میباشد و سعی شده تصاویر با کیفیت از کالا قرار گیرد. لذا تصاویر را ملاک خرید خود قرار دهید(دوستان دقت بفرمایید کالای استوک هرچقدر هم که تمیز باشد دارای خش میباشد)***

----------------------------------------------------------------

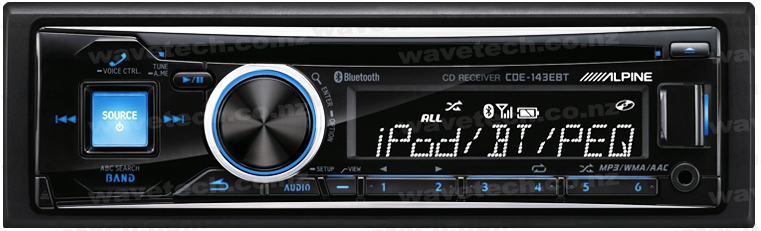

Alpine CDE-143EBT

 CD/MP3/WMA Receiver with Bluetooth, Front AUX & USB

The all-new CDE-143EBT is a superbly crafted CD Receiver equipped with astounding features and connectivity to play and control your digital media via Bluetooth or USB, as well as advanced tuning for sound quality Alpine is famous for.

Play all your favourite music MP3/WMA files on CD or USB storage, connect and play iPod/iPhone via USB, or play virtually any MP3 player via the AUX input conveniently located on the front panel. Built-in Bluetooth provides hands-free operation and Bluetooth audio streaming with control functionality. What’s more, the dual Preouts enable the unit to be connected to multiple amplifiers and high power speakers to enhance your listening experience. Plus, 3 band parametric EQ and high pass / low pass filters give you maximum control to tune the sound exactly how you like it. App mode provides functions via a compatible phone with the downloaded Alpine application. Moreover, the included remote control makes using the CDE-143EBT a breeze for passengers.

Features
• Built-in Parrot Bluetooth Module
• External Microphone
• A2DP (Audio Streaming)
• Front 1A USB Input (iPod/iPhone Compatible)
• Front AUX Input

Bluetooth Plus (Phone & Audio Streaming)

• Bluetooth Plus (Phone & Audio Streaming)
• Bluetooth HFP/A2DP/AVRCP Profile
• Nokia Phone Compatible (requires KCU-230NK)
• App Mode for iPhone
• MP3/WMA Playback (CD & USB)
• 3-Band Parametric EQ
• High Pass & Low Pass Filters
• AM/FM Radio Tuner
• Anti-Dust Design
• MediaXpander
• Detachable Face Plate
• RCA Output (2 Pair)
• Rotary Volume Control
• Remote Control

Specifications
• Power Requirement: 12V DC Negative Ground (11V-16V acceptable)
• FM Tuning Range: 87.5 - 108.0 MHz (NZ frequency)
• AM Tuning Range: 531 - 1,602 kHz (NZ frequency)
• Speaker Output: 50W x 4 (4Ω)
• Speaker Impedance: 4Ω (4-8Ω acceptable)

Size
• Standard Single Din Size
• Width: 178mm
• Height: 50mm

You'll drive safer with Alpine's CDE-143BT CD receiver in your car, courtesy of its built-in Bluetooth®. When a call comes in, you'll see your caller's phone number on the screen, and you can answer the call by tapping the phone button on the front panel. You can adjust the mic's gain to best match your speaking voice, plus you can also tweak the phone output and ring volume, so you won't go diving for the volume knob every time someone calls.The CDE-143BT also supports Bluetooth audio streaming, so you can listen to any of the content on your Bluetooth equipped smartphone without a tangle of wires on your car's console.

Enjoy iPod control, Bluetooth, and great sound with the CDE-143BT.

Easy access to your iPod® and iPhone® music content

Once you plug into the convenient front-panel USB input, you can use the CDE-143BT's controls to navigate your iPod's music library. Your riders will appreciate Passenger Control Mode, which lets them play DJ while you focus on driving. You can adjust your sound to taste with one of the ten equalizer presets or by using the 3-band parametric EQ.

App Direct Mode for music apps

Plug in your iPhone and you can also listen to some of your favorite music apps, like Pandora®, Rhapsody, and others with Alpine's App Direct Mode. You'll have basic control of music functions playback functions, such as play, pause, and next track from receiver, while you use your iPhone's touchscreen to other functions of the music apps.

Want to keep your steering wheel controls?

In most cars, you'll need an adapter to retain those controls with this car stereo. Connect a few wires, then program the adapter for your particular car and radio, and you'll retain the convenience of your steering wheel controls. You'll see the adapters that work with your vehicle when you add this receiver to your cart.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

iPod/smartphone note: If you're going to use your iPod or smartphone with this receiver, be sure to check "Details" for compatibility information.

Product highlights:

General features:

• CD receiver with AM/FM tuner
• built-in MOSFET amplifier (18 watts RMS CEA-2006/50 peak x 4 channels)
• built-in Bluetooth for hands-free calling and audio streaming
• App Mode for basic control of select music apps
• compatible with Alpine KTP-445 Power Pack amplifier
• detachable face

Audio features:

• 3-band parametric equalizer
• built-in high- and low-pass filters

Expandability:

• inputs: front-panel USB and auxiliary inputs

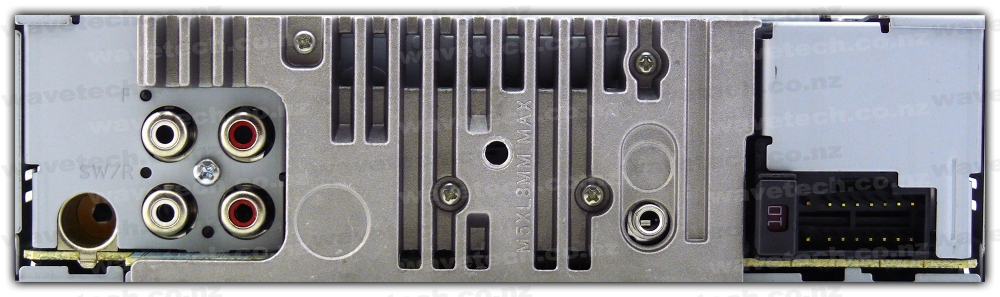

• outputs: 4-channel preamp outputs (2-volt front, rear/subwoofer)

Other features and specs:

• compatible with most factory steering wheel audio controls (adapter required)
• CEA-2006 compliant amplifier
• warranty: 1 year
• 60-day returns
• MFR # CDE-143BT
• Item # 500CDE143B

What's in the box:

Alpine CDE-143BT owner's manual

If you need assistance accessing this owner's manual, please give us a call.

• CD receiver (10A ATC fuse inserted in chassis)
• Sleeve (installed)
• Trim ring (installed)
• Face (attached)
• Wiring harness
• Hard plastic face case
• Microphone w/ attached 13' cable terminated by a right-angle male 3.5mm connector (inside face case)
• Sun-visor bracket (inside face case)
• Two-sided tape (inside face case)
• 4 Flat-head ISO-DIN screws (M5 x 8mm)
• Face fixing screw
• 2 Radio removal tools
• Owner's Manual CD-ROM
• Quick Reference Guide (En/Fr/Sp)
• Online Product Registration
• Computer Requirements booklet

وسایل همراه: سوکت برق، میکروفن نو(کیفیت درجه یک)، زه نو
