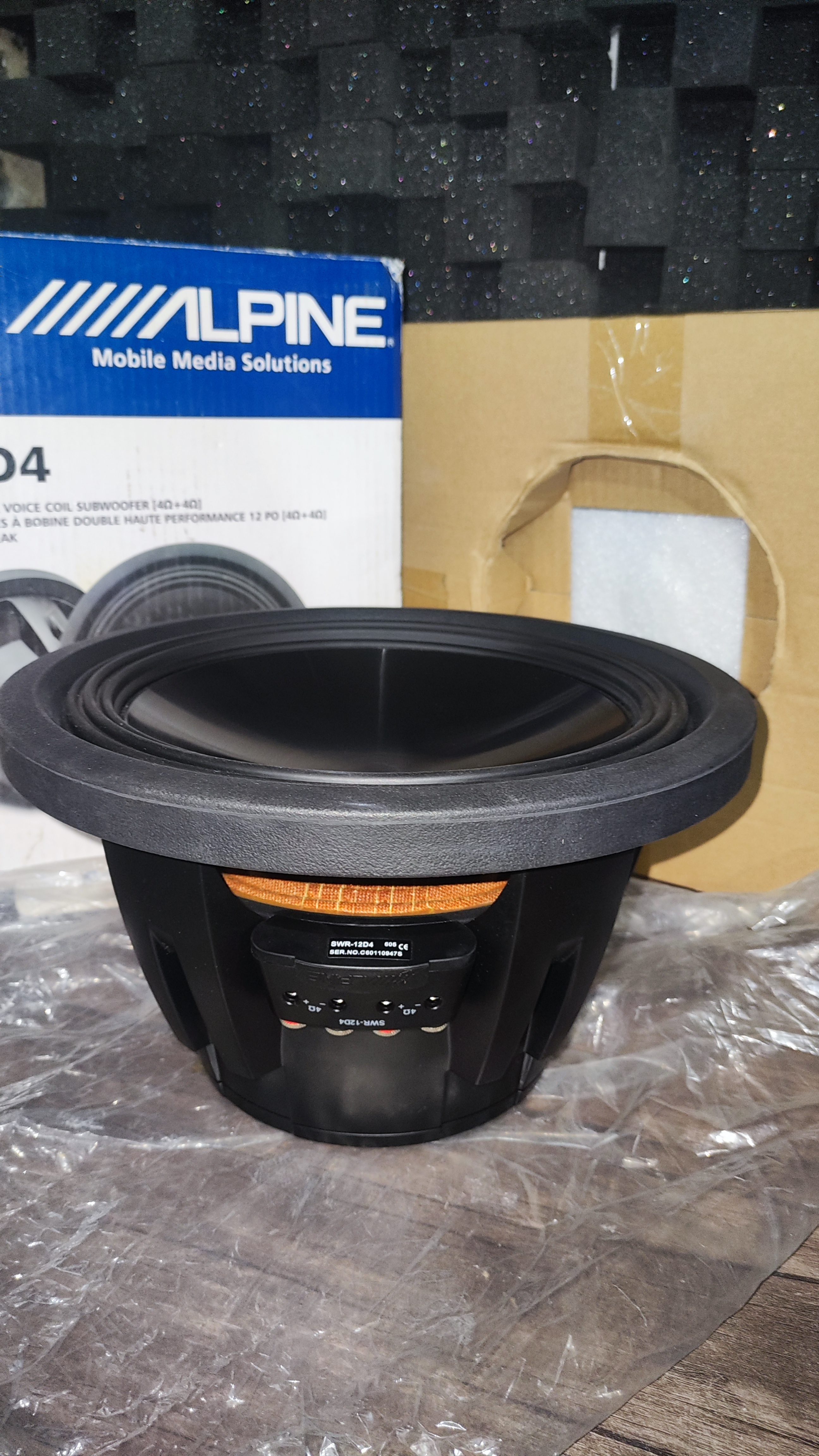

ساب حرفه ای و قدرتمند از شرکت آلپاین- سریR آلپاین- 1000وات RMS و 3000 وات ماکزیمم-سایز 12 اینچ- به صورت آکبند(نو)

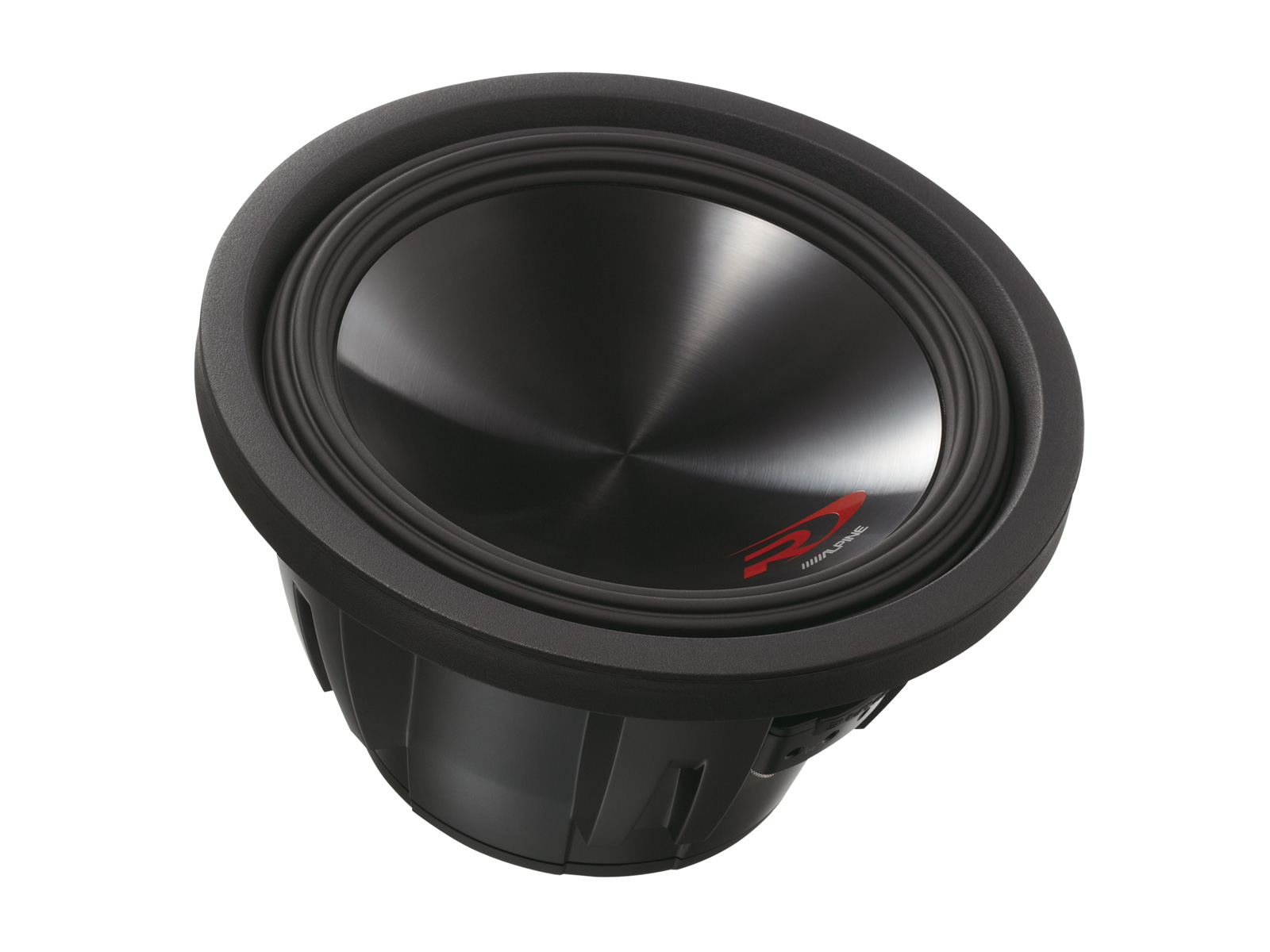

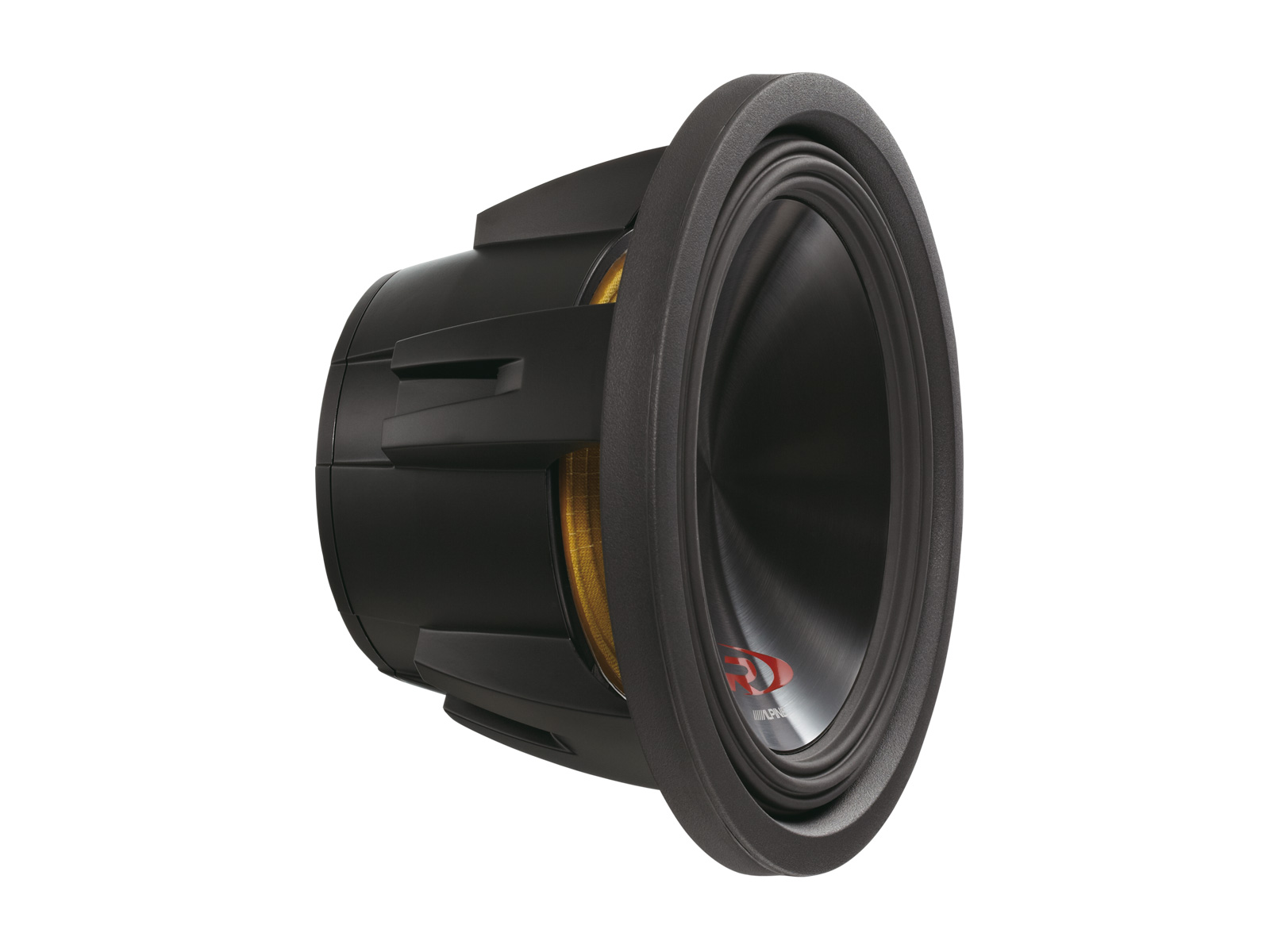

ALPINE SWR-12D4
تایپ R
- سایز 12 اینچ
- 1000W RMS
- 3000W MAX

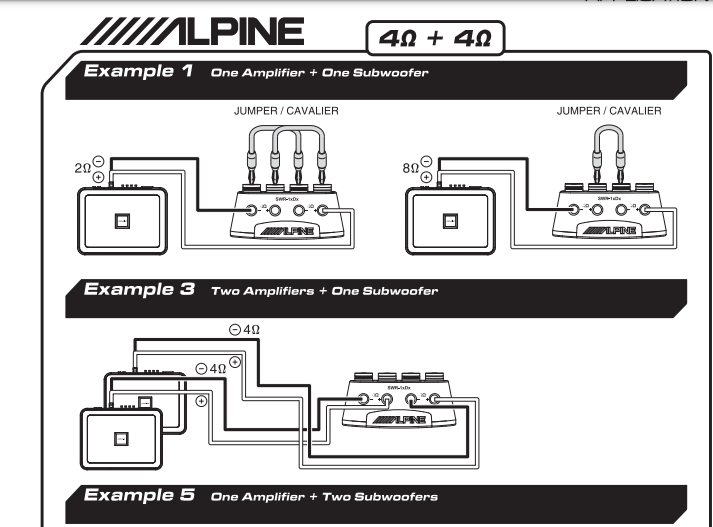

- دارای دو کوئل 4 اهمی
- صفحه کولار و تقویت شده با کربن

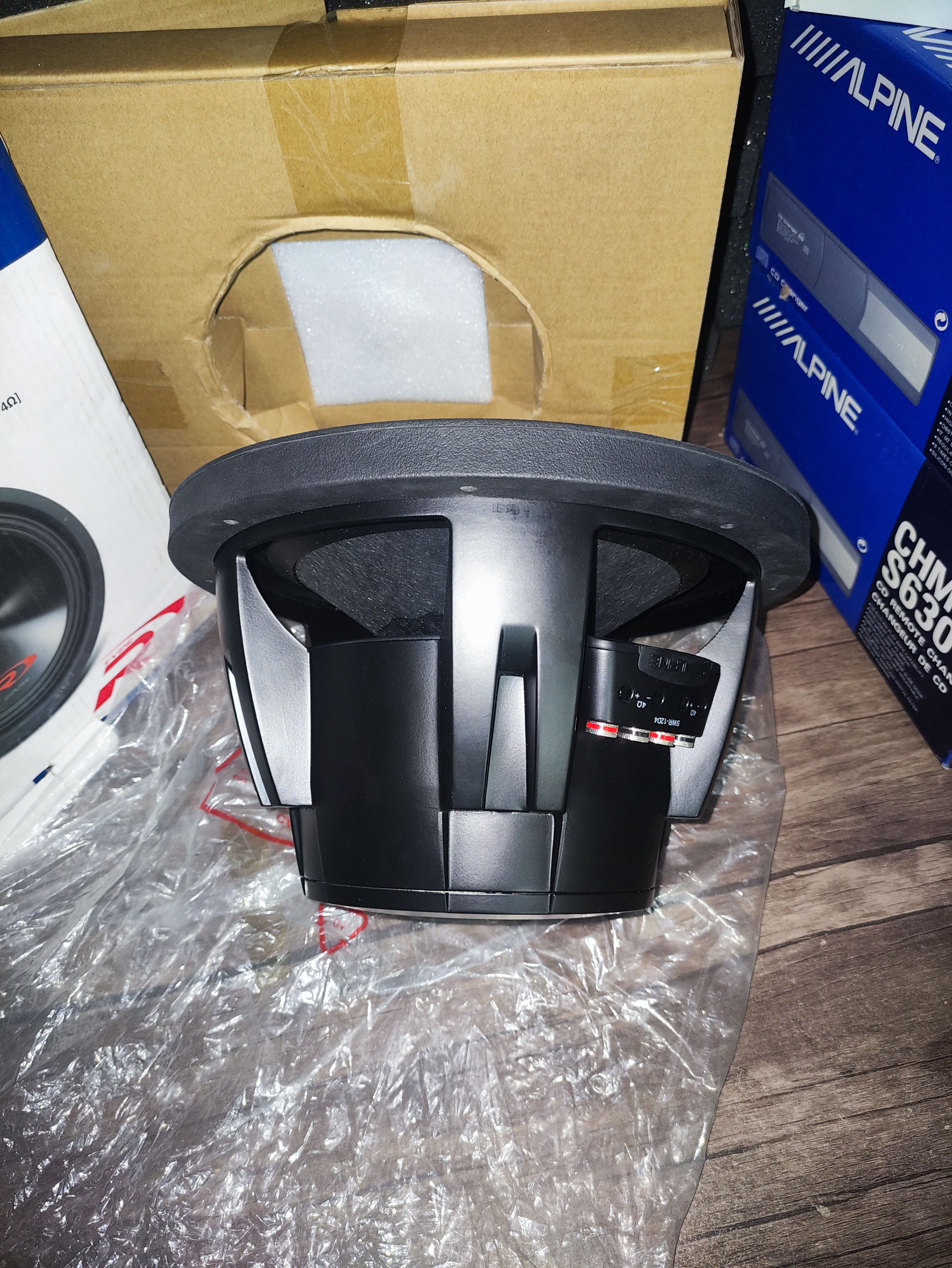

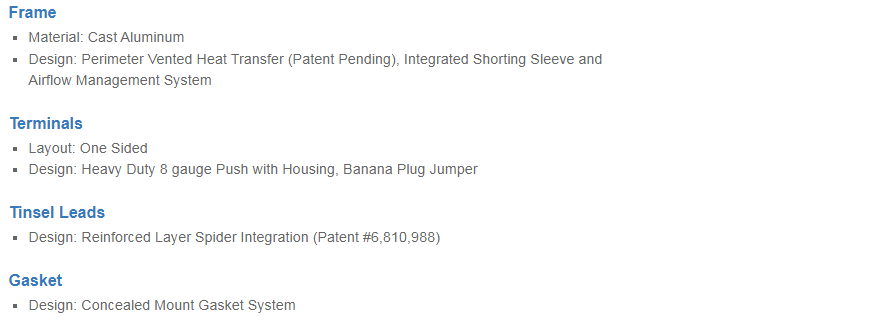

- بدنه الومینیوم دایکاست

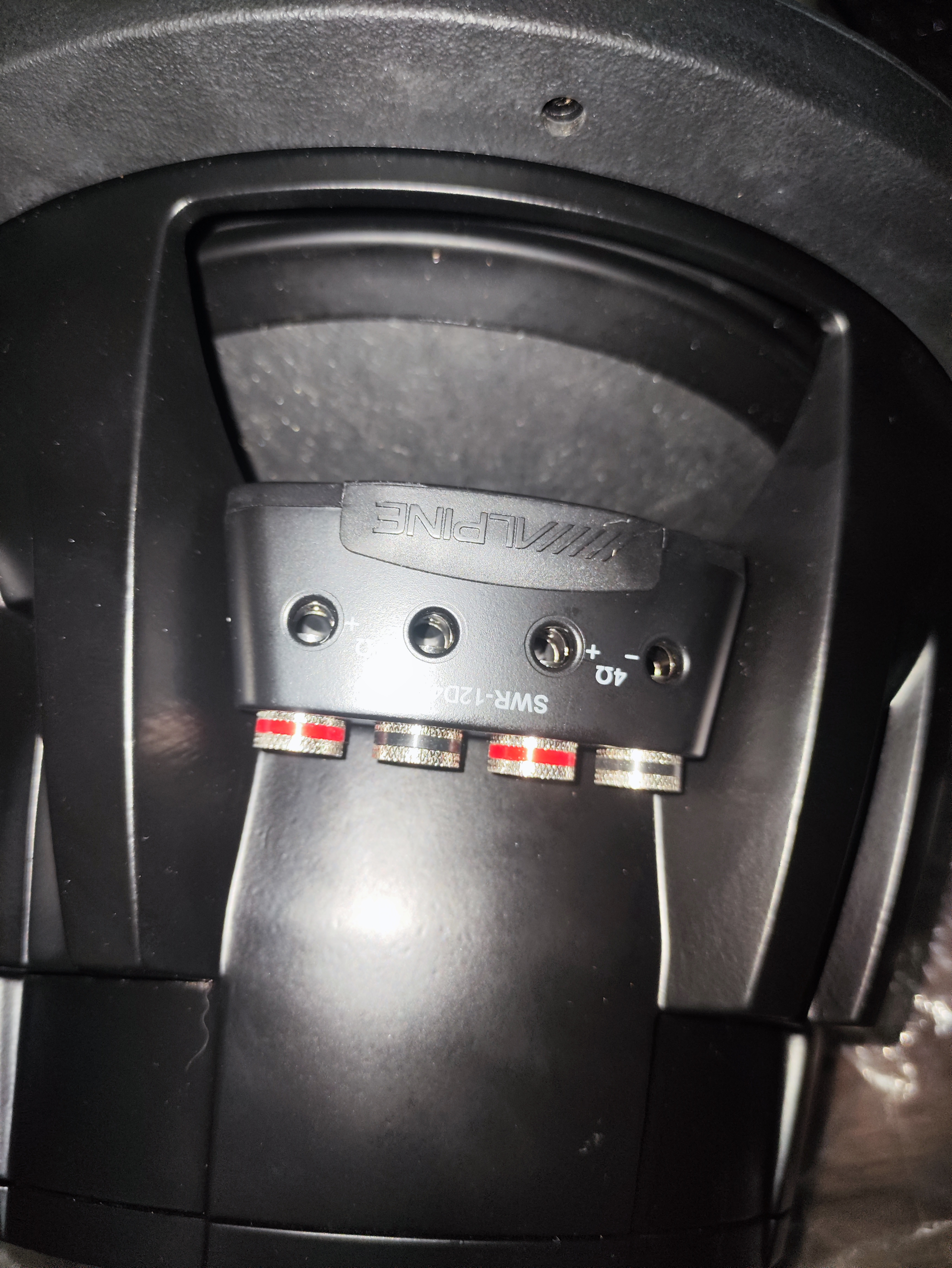

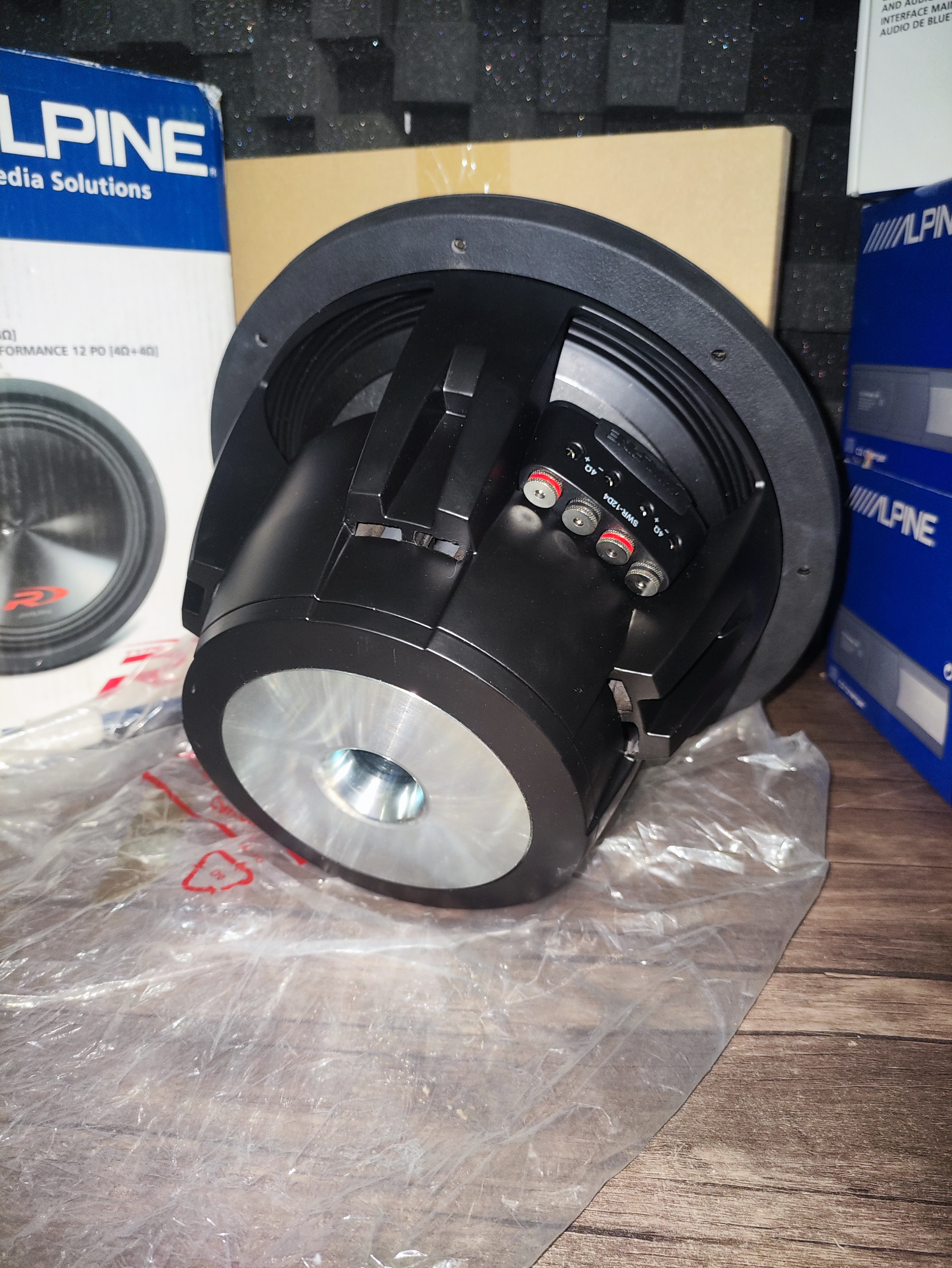

- ترمینال ها به صورت فشاری
- سوراند چند لایه
- بازه فرکانسی 26-200هرتز
- کنترل حرارتی پیشرفته سیم پیچ
- کیفیت ساخت بسیار عالی

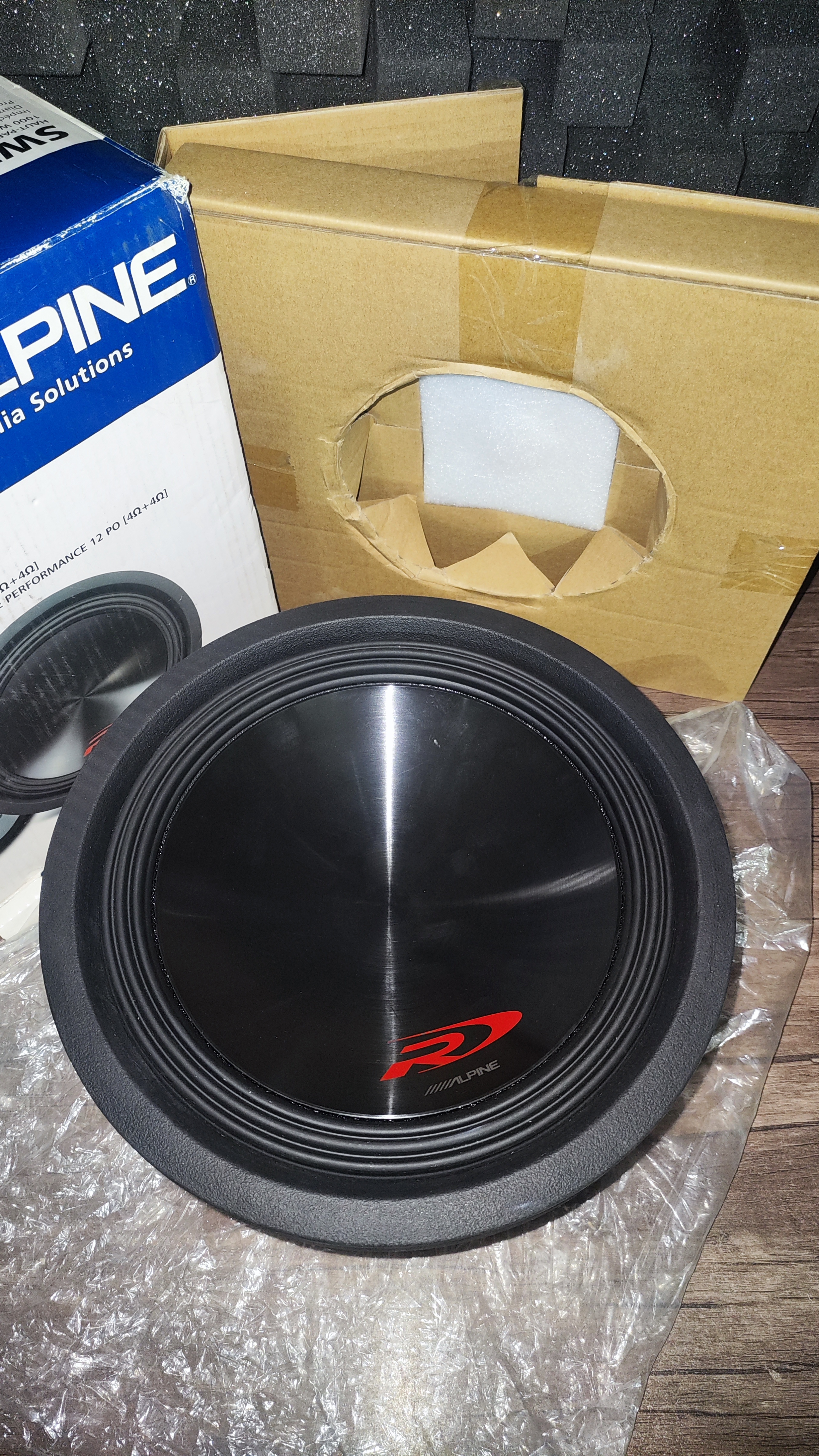

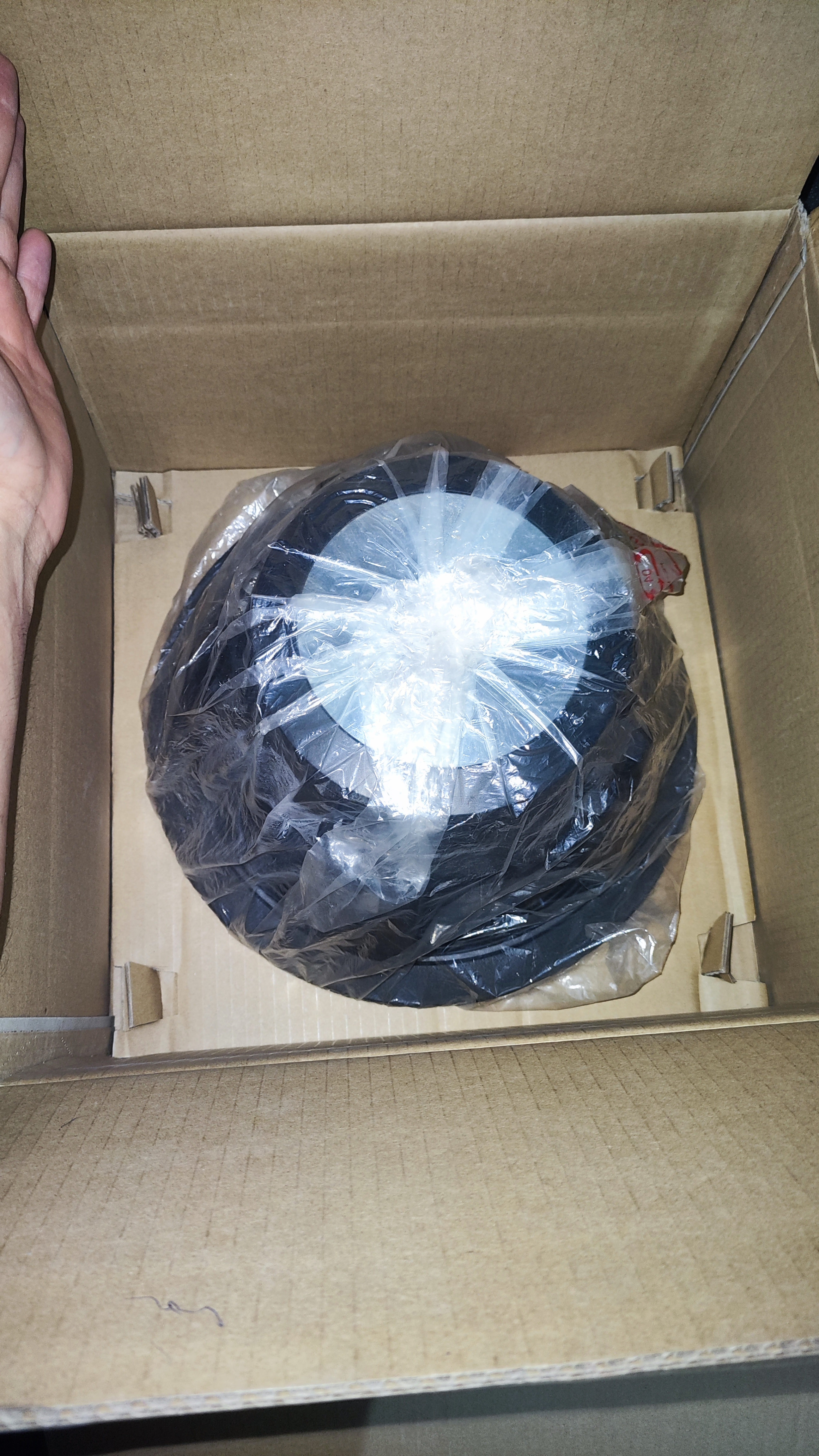

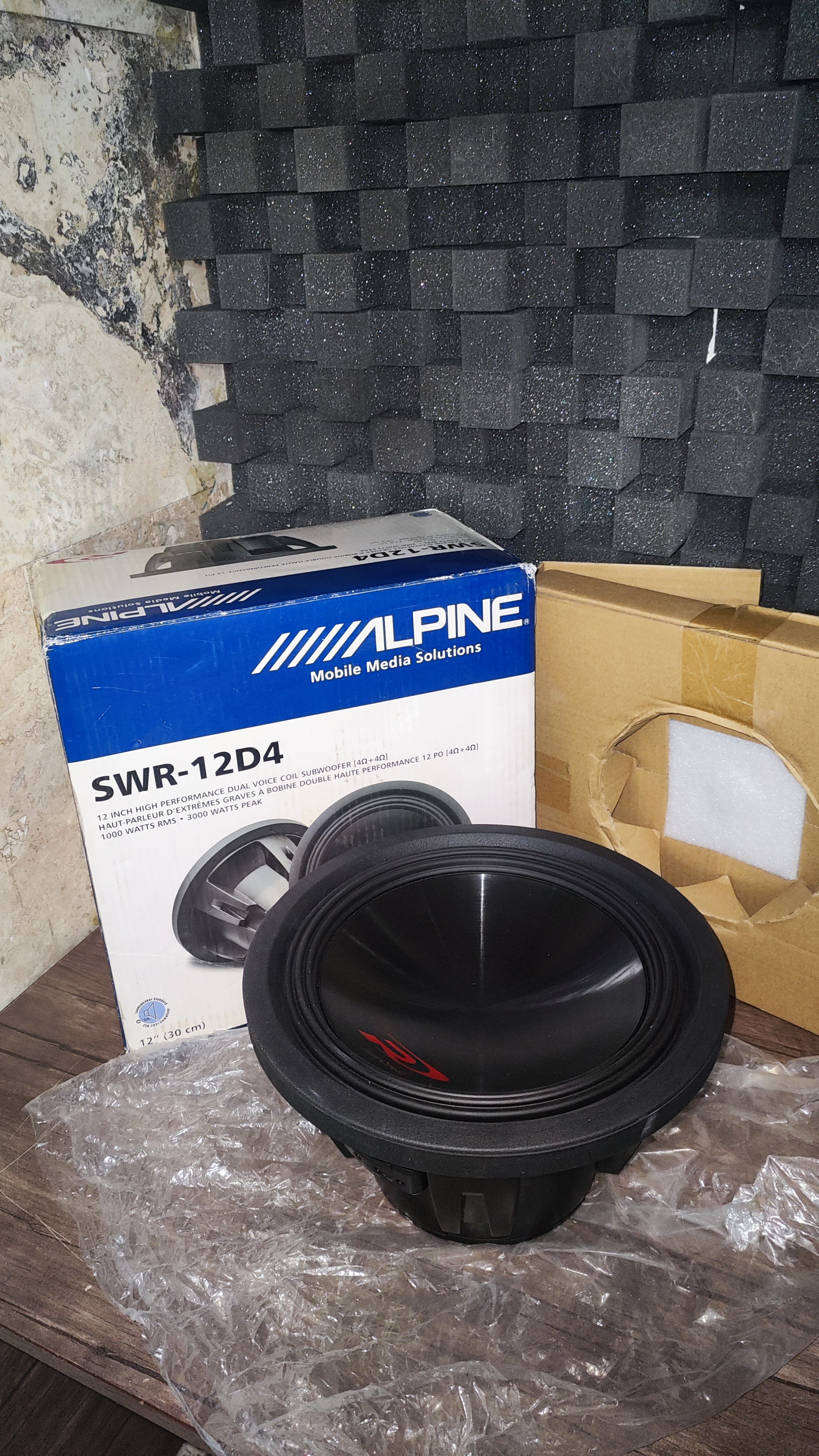

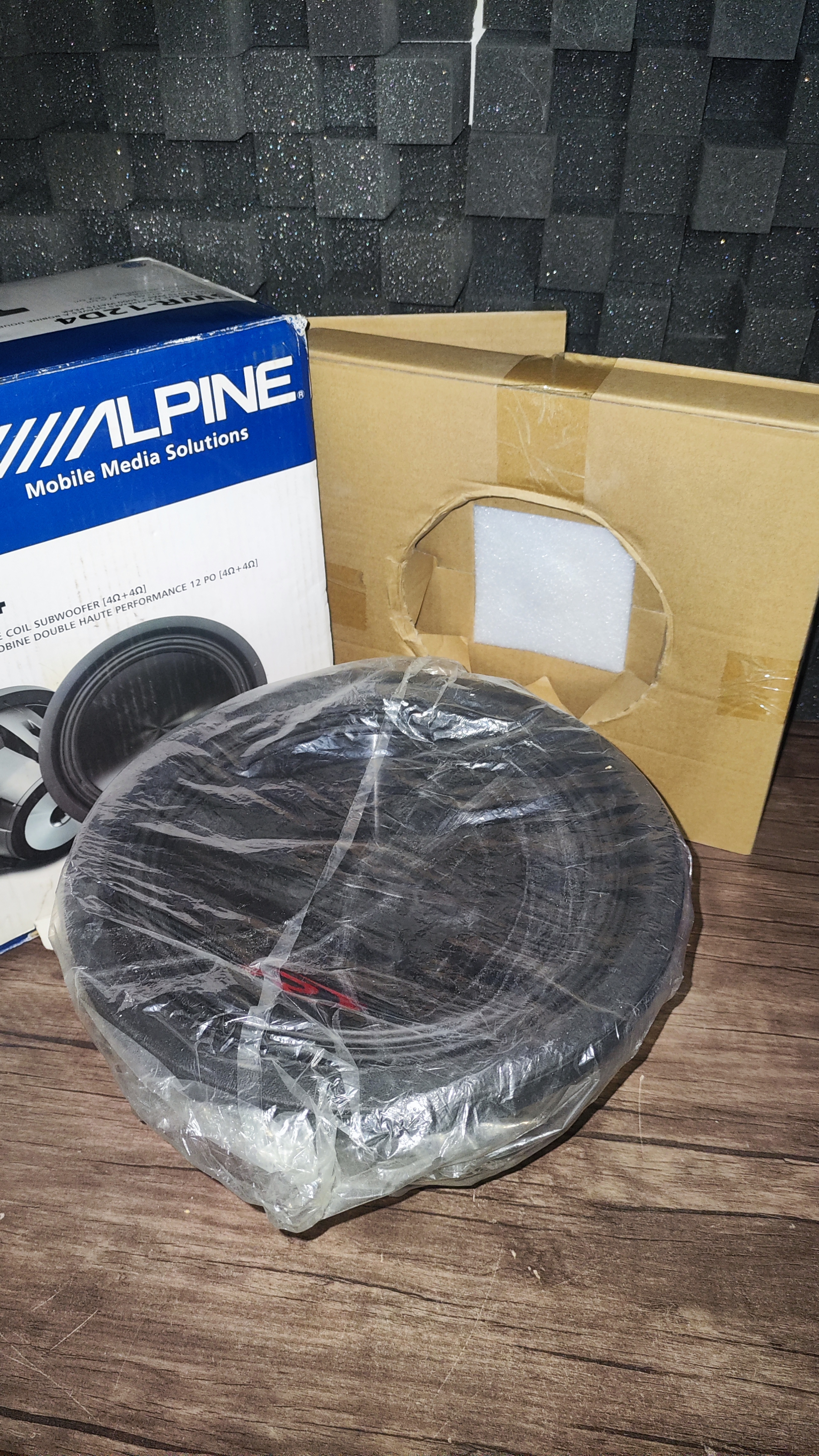

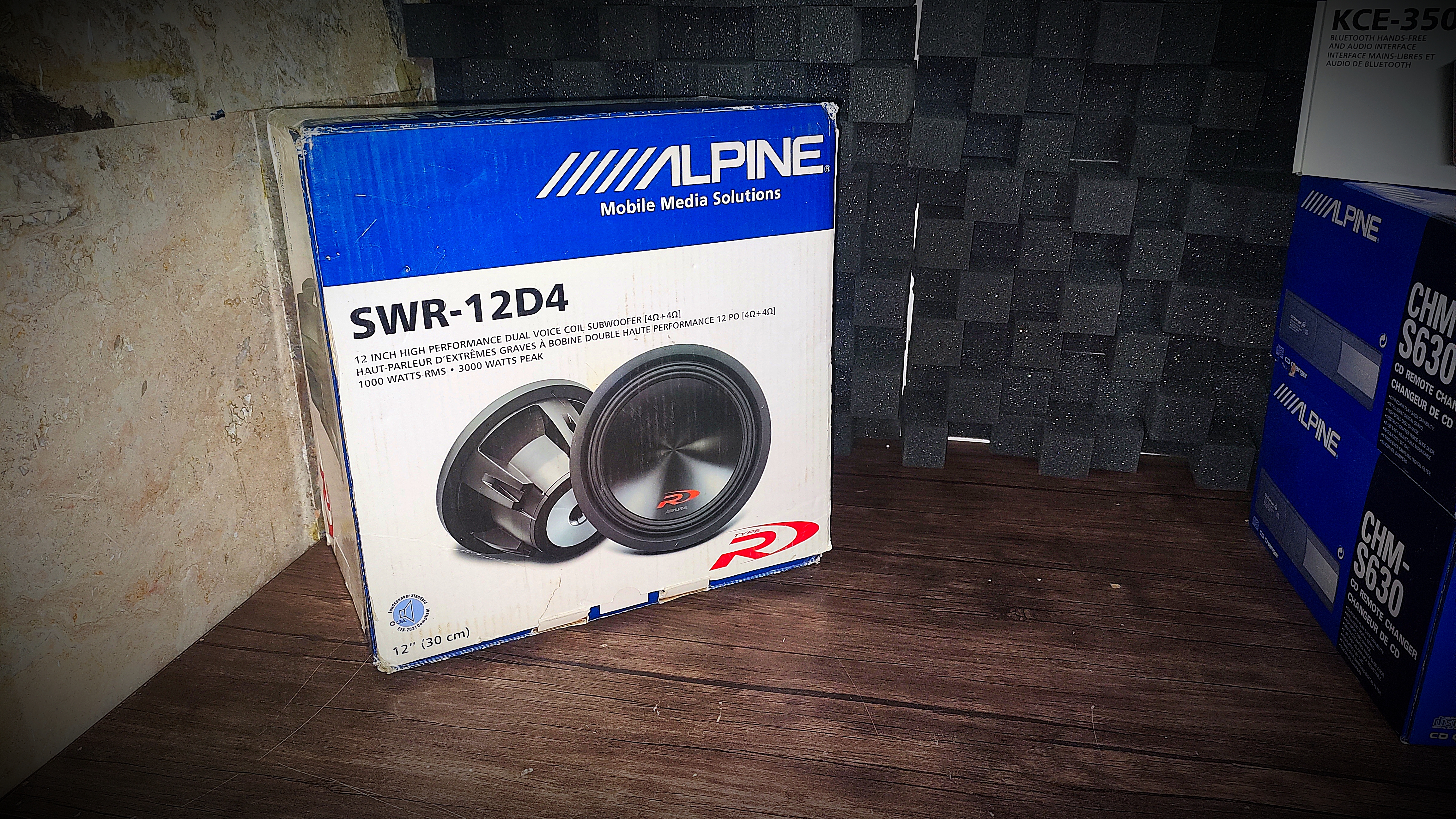

- به صورت آکبند همراه با کارتن
این مدل به دوستانی پیشنهاد میگردد که نیازمند بیس قدرتمند همراه با دقت و کنترل بالا هستند

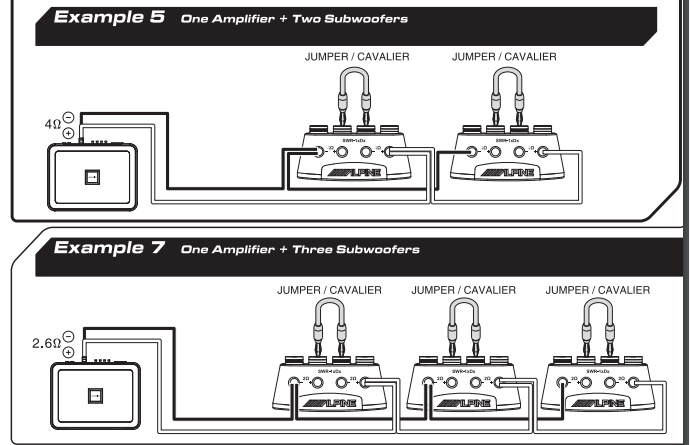

*دقت شود این سابووفر حتما نیاز به امپلیفایر مونو برای راه اندازی دارد و با امپهای استریو قابل راه اندازی نیست*
مشخصات رسمی شرکت
Alpine SWR-12D4 – 12″ DVC Type R Subwoofer

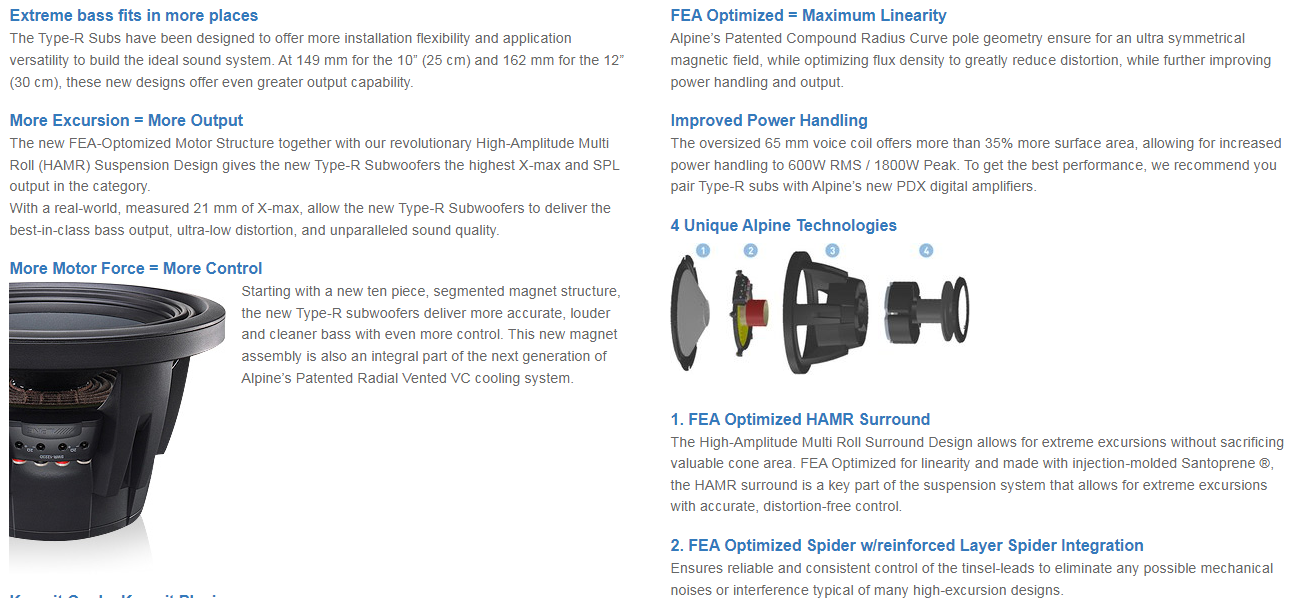

Alpine Type-R 12″ Subwoofer – The all-new Type-R Subwoofers now offer unique Alpine technology and massive power handling to achieve even cleaner and deeper bass extension, faster and more accurate transients, and greater output capability. With more power handling and patented Alpine technology for lower distortion and higher SPL, the new Type-R subs take performance to all new heights.
* 1 Year Warranty as per Alpine Electronics Australia T&C’s
SKU: SWR12D4 Categories: 12" Subwoofer, 4. Subwoofers, Alpine, Car Audio
This product has been discontinued.
- Description
Description

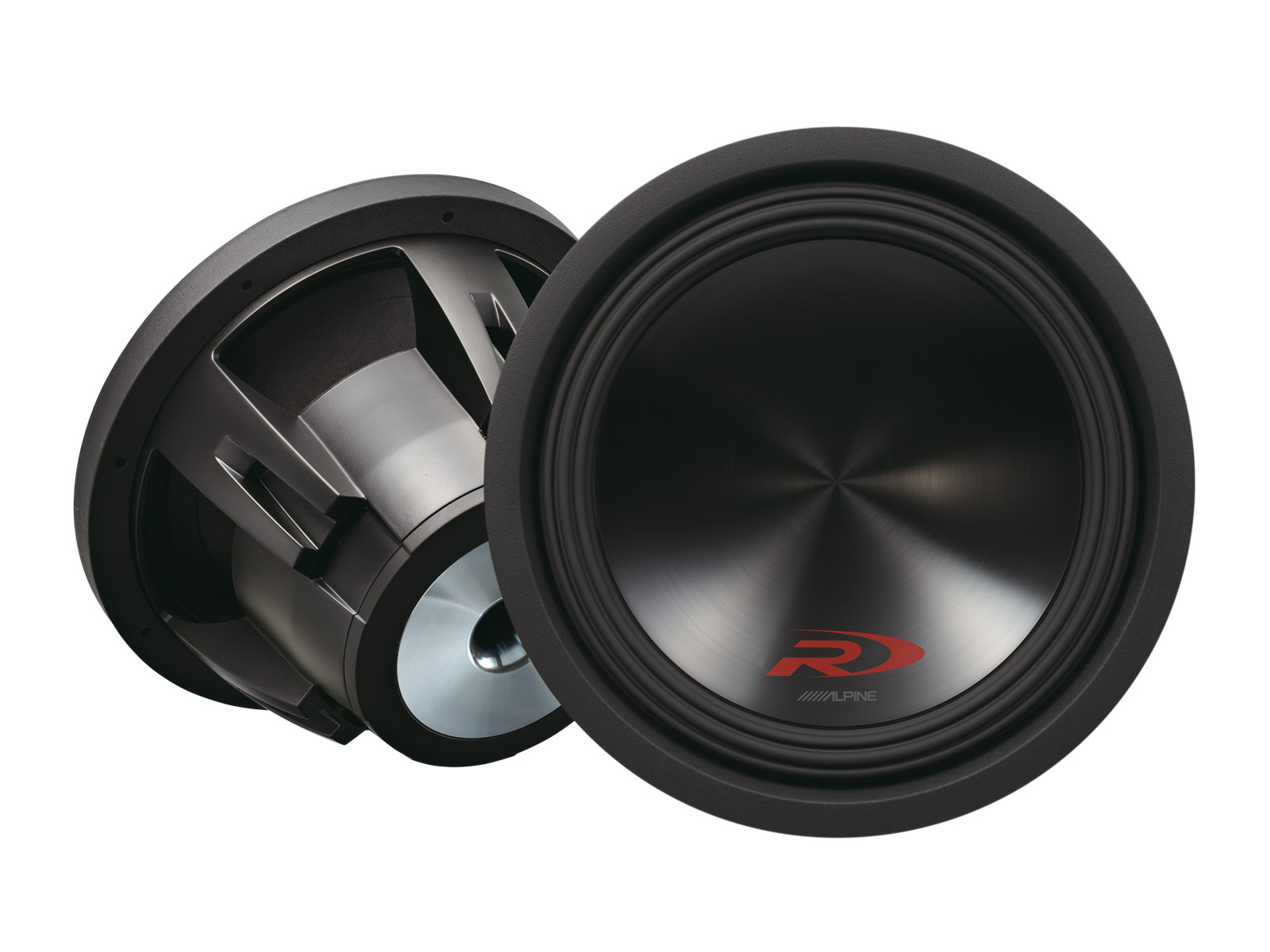

Alpine SWR-12D4 – 12″ Type R Subwoofer

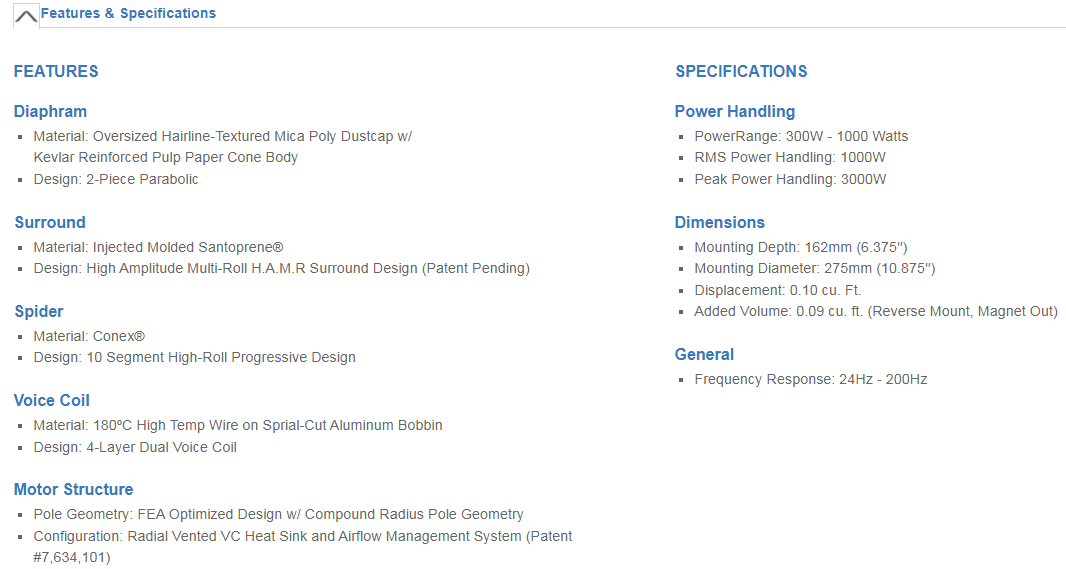

Features
- Kevlar-Reinforced Carbon Fibre Cone
- Aluminium honeycomb
- Kevlar-Reinforced pulp for maximum strength

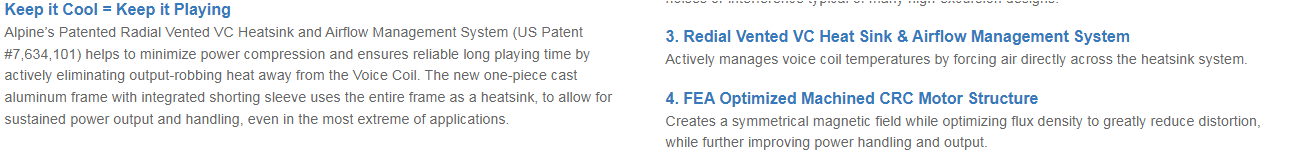

- High-efficiency thermal management
- High-Amplitude Multi-Roll Surround
- heavy-gauge push terminals
- Peak Power Handling: 3000W
- RMS Power Handling: 1000W
- Nominal Impendance: 4ohms+4ohms
- Frequency Response: 26Hz-200Hz
- Mounting Dimensions: 275mm diameter x 161.8mm depth

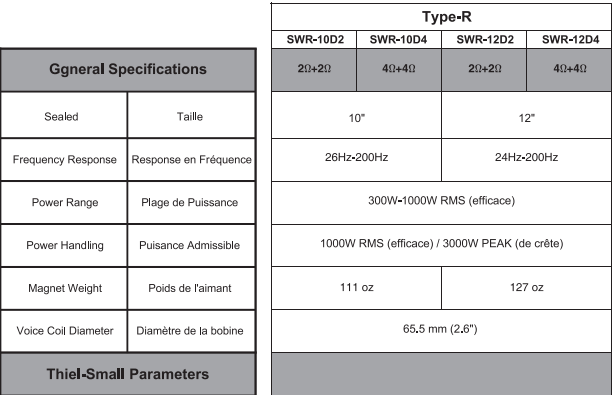

Specifications
General
- Sealed: 12″
- Frequency Response: 24Hz-200Hz
- Power Range: 300W – 1000W RMS
- RMS Power Handling: 1000W
- Peak Power Handling: 3000W
- Magnet Weight: 127oz
- Voice Coil Diameter: 65.5 mm (2.6″)

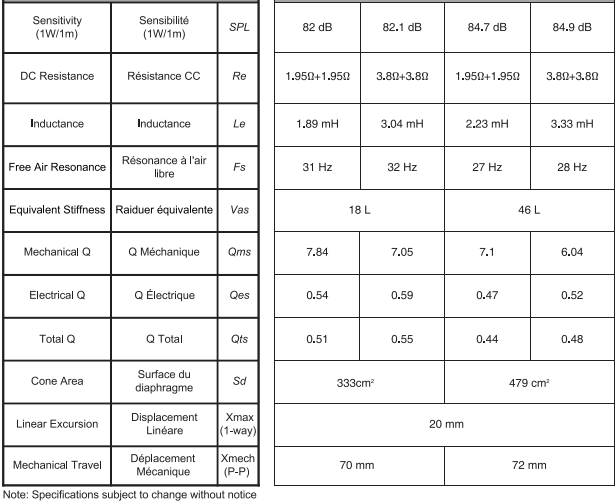

Thiel-Small Parameters
- Sensitivity (1W/1m): 84.9dB
- DC Resistance: 3.8ohms + 3.8ohms
- Inductance: 3.33 mH
- Free Air Resonance: 28 Hz
- Equivalent Stiffness: 46L
- Mechanical Q: 6.04
- Electrical Q: 0.52
- Total Q: 0.48
- Cone Area: 479cm²
- Linear Excursion: 20 mm
- Mechanical Travel: 72 mm
Sealed box range
- Net Internal Volume: 0.55-1.0 ft³
Recommended Sealed Box
- External box dimensions: 14″x14″x11″
- Gross internal volume: 0.85 ft³
- Net internal volume: 0.75 ft³
- F3, Qtc: 45 Hz, 0.81
Vented box range
- Net internal volume: 1.0-1.5 ft³
- Tuning: 32-37 Hz
Recommended vented box
- External box dimensions: 23″ x 12.5″ x 14″
- Gross internal volume: 1.71 ft³
- Dimensions: 12.5in² (12.5″x1″)
- Gross internal volume: 19″
- Vent displacement: 0.23 ft³
- Net internal volume (Vb): 1.38 ft³
- F3, ripple, Fb: 29Hz, 4.4dB, 35Hz
